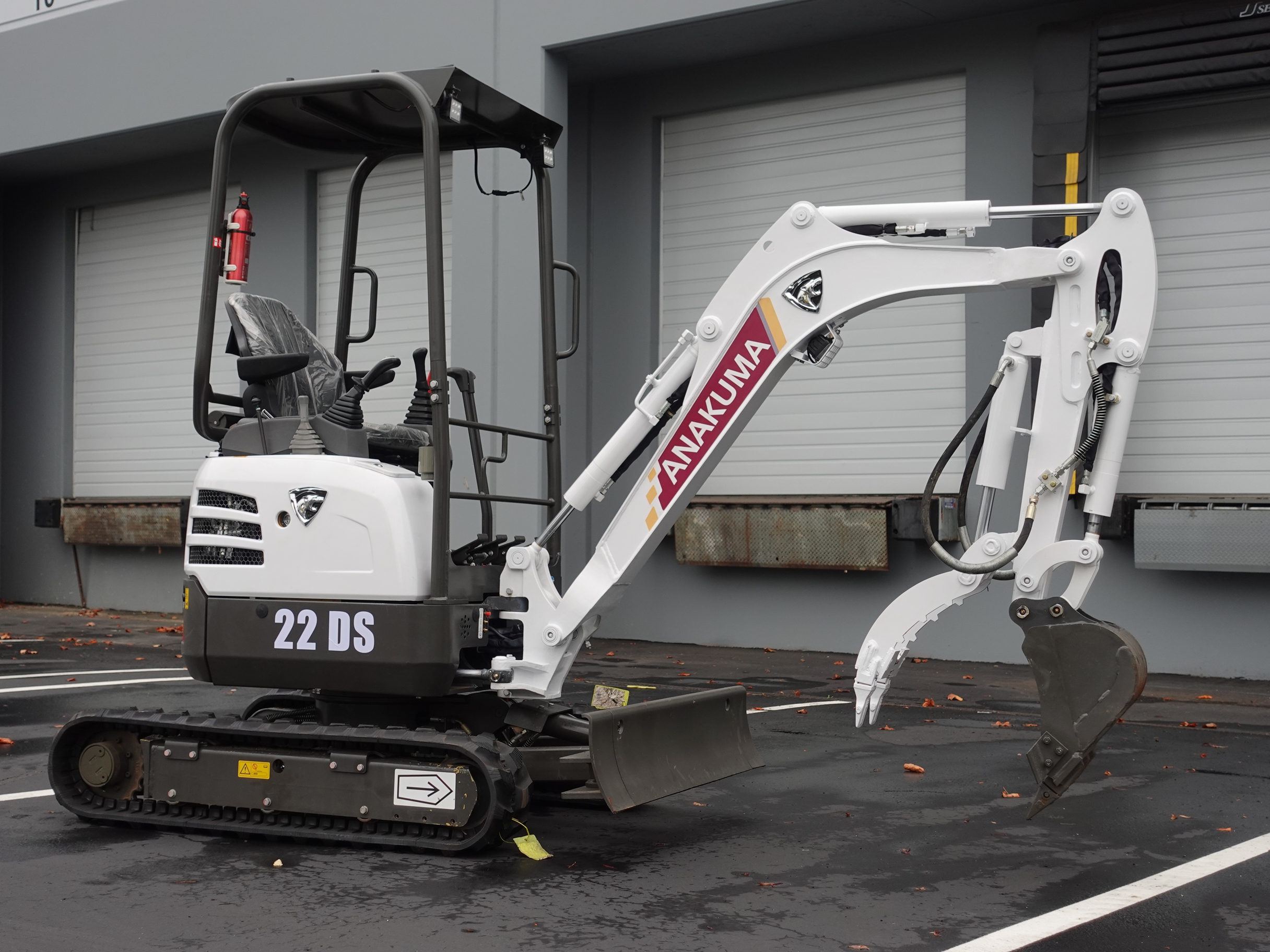

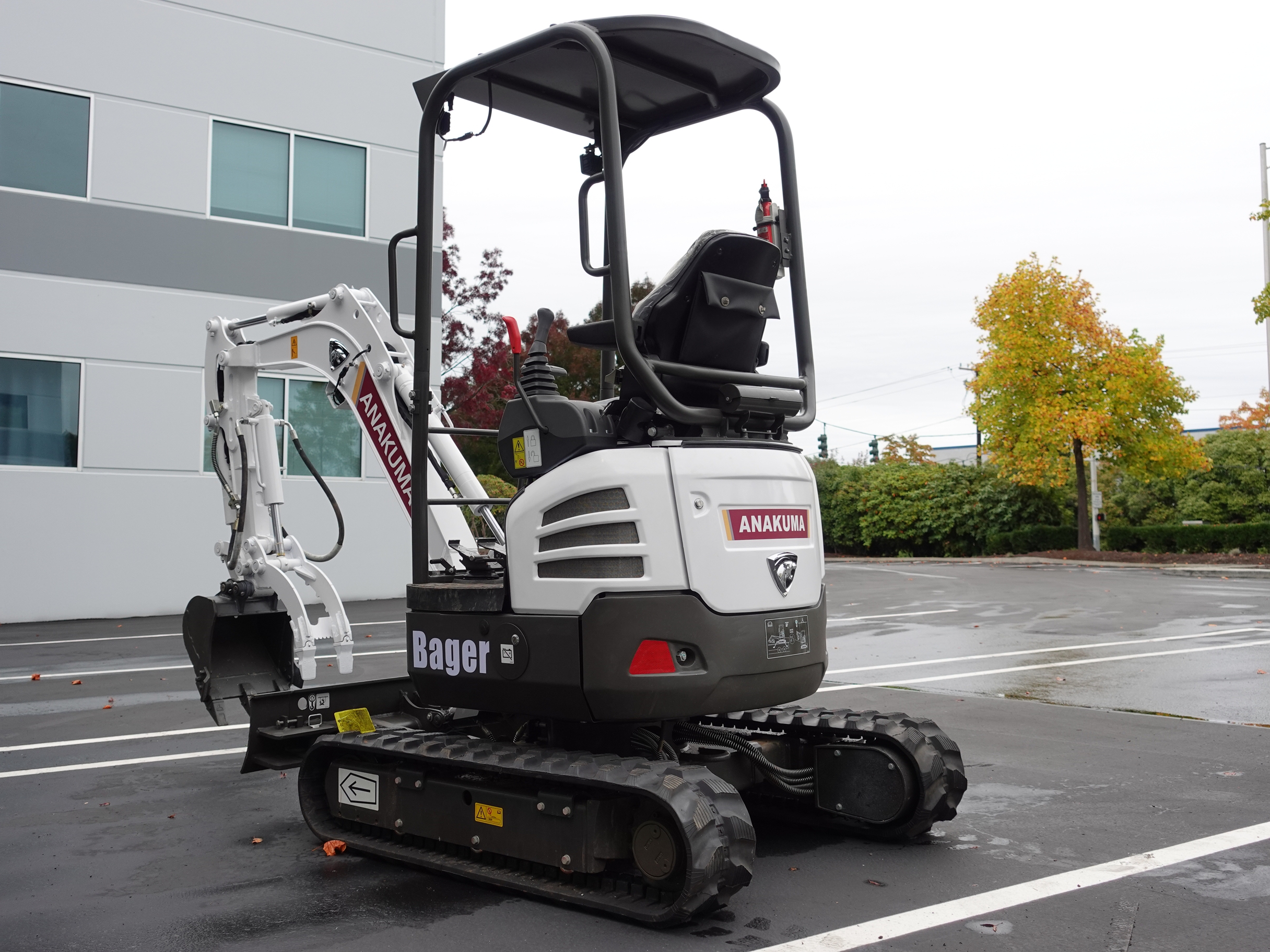

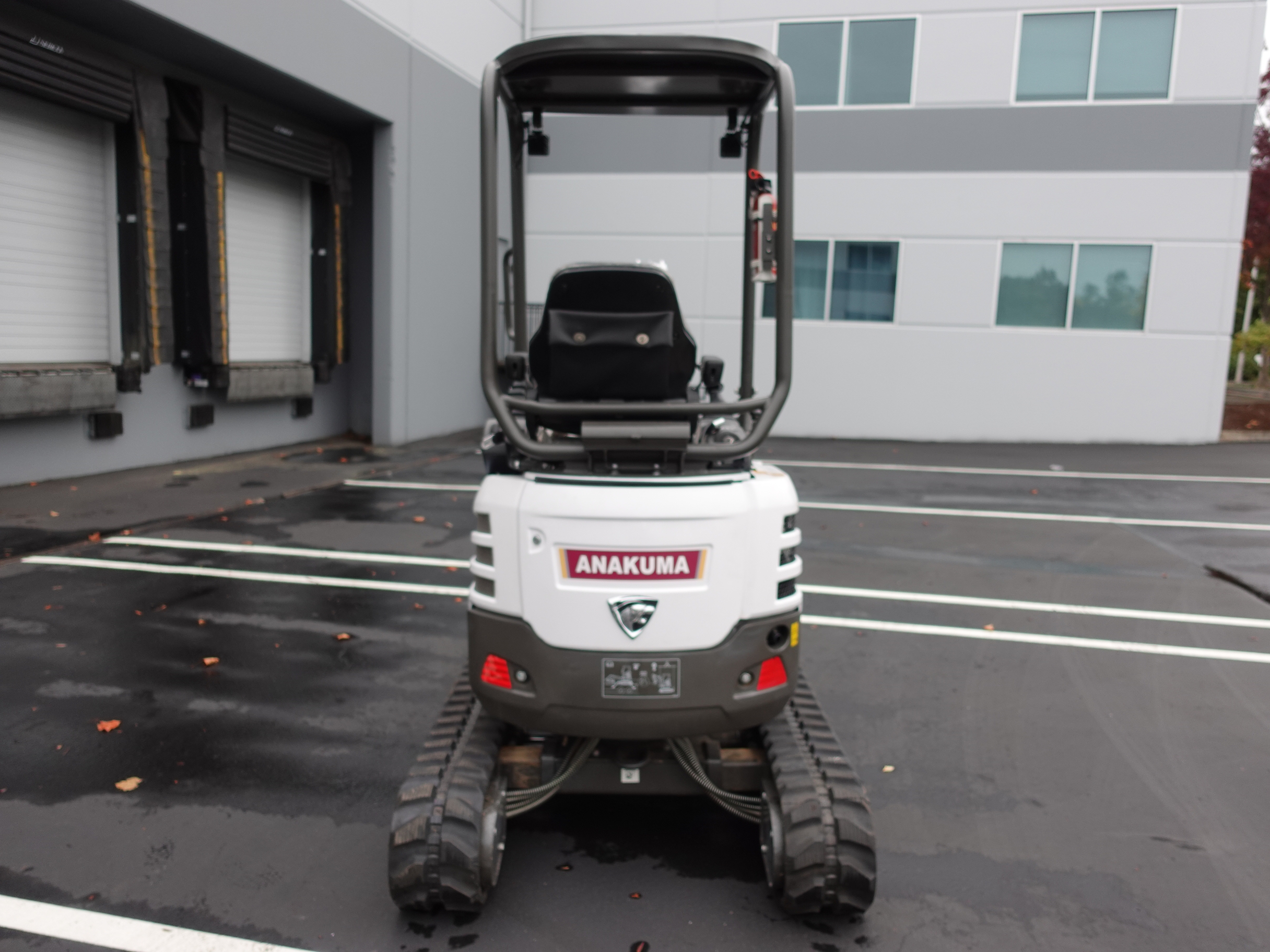

Badger Mini Excavator
Badger 22DS
MSRP
26000
STANDARD FEATURES
World class core components
Over Built Machine
Best operating experience
Better than Kubota
3 year 3000 hours warranty
Unbeatable reliability and warranty
Full body robotic welding
Top Notch Quality
PRODUCT SPECIFICATIONS Badger 22DS
| Category | Spec | Unit |
| Bucket Capacity | 1.4 | cubt feet |
| Swing Speed | 9.2 | RPM |
| Gradabiality | 30 | Degree |
| Max Bucket Digging Force | 3500 | lbf |
| Max Arm Digging Force | 2200 | lbf |

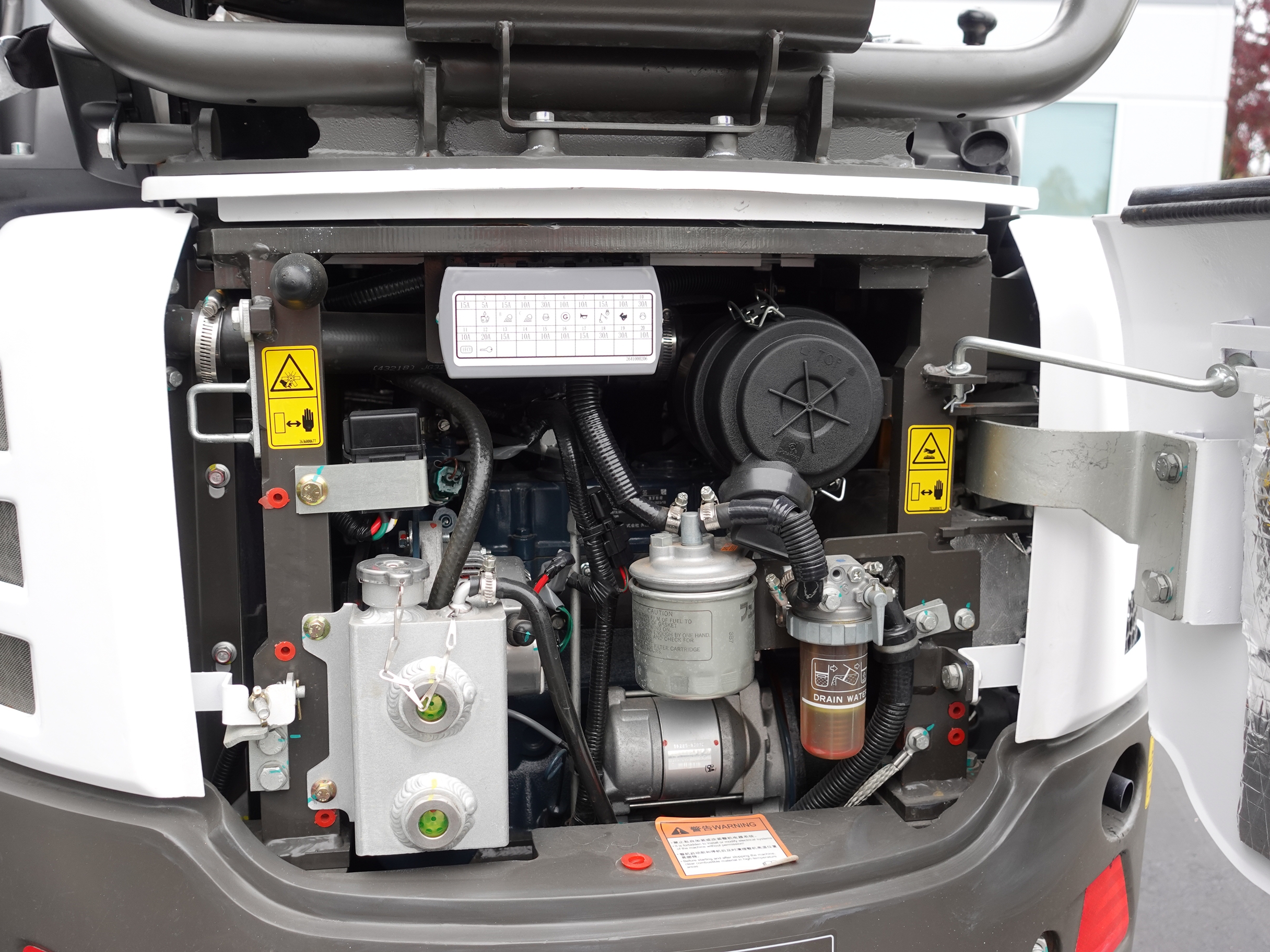

| Engine Model | Kubota 782 | |
| Power/Revolution Speed | 14/2300 | HP/RPM |
| System Pressure | 24 | mpa |
| Machine Size | Metric (mm) |
Standard (inch) |
| Total transport length | 3,608 | 150 |
| Total Transport width | 970 | 40 |
| Total height | 2,375 | 99 |

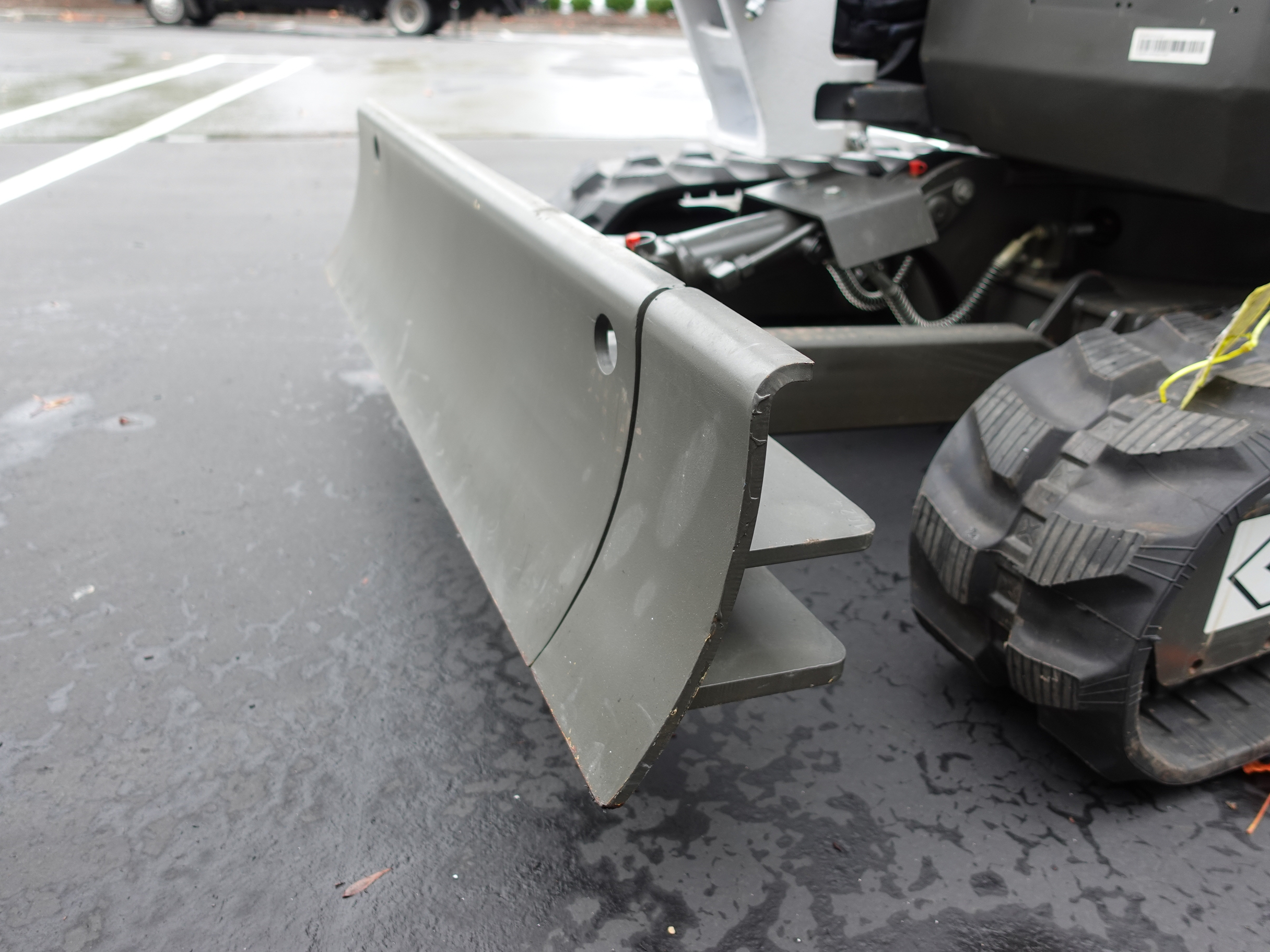

| Bulldozer blade width | 1,240 | 52 |
| Bulldozer blade height | 300 | 13 |
| Caterpillar band center distance | 810 | 34 |
| Plaform clearance | 145 | 6 |
| Track width | 230 | 10 |
| Total length of caterpillar band | 1,585 | 66 |
| Fluid capacity | ||||
| Metrics | Unit | Standard | Unit | |
| Fuel | 18 | L | 4.9 | Gallon |
| Motor oil | 3.8 | L | 1.0 | Gallon |
| Hydraulic oil | 23 | L | 6.3 | Gallon |
