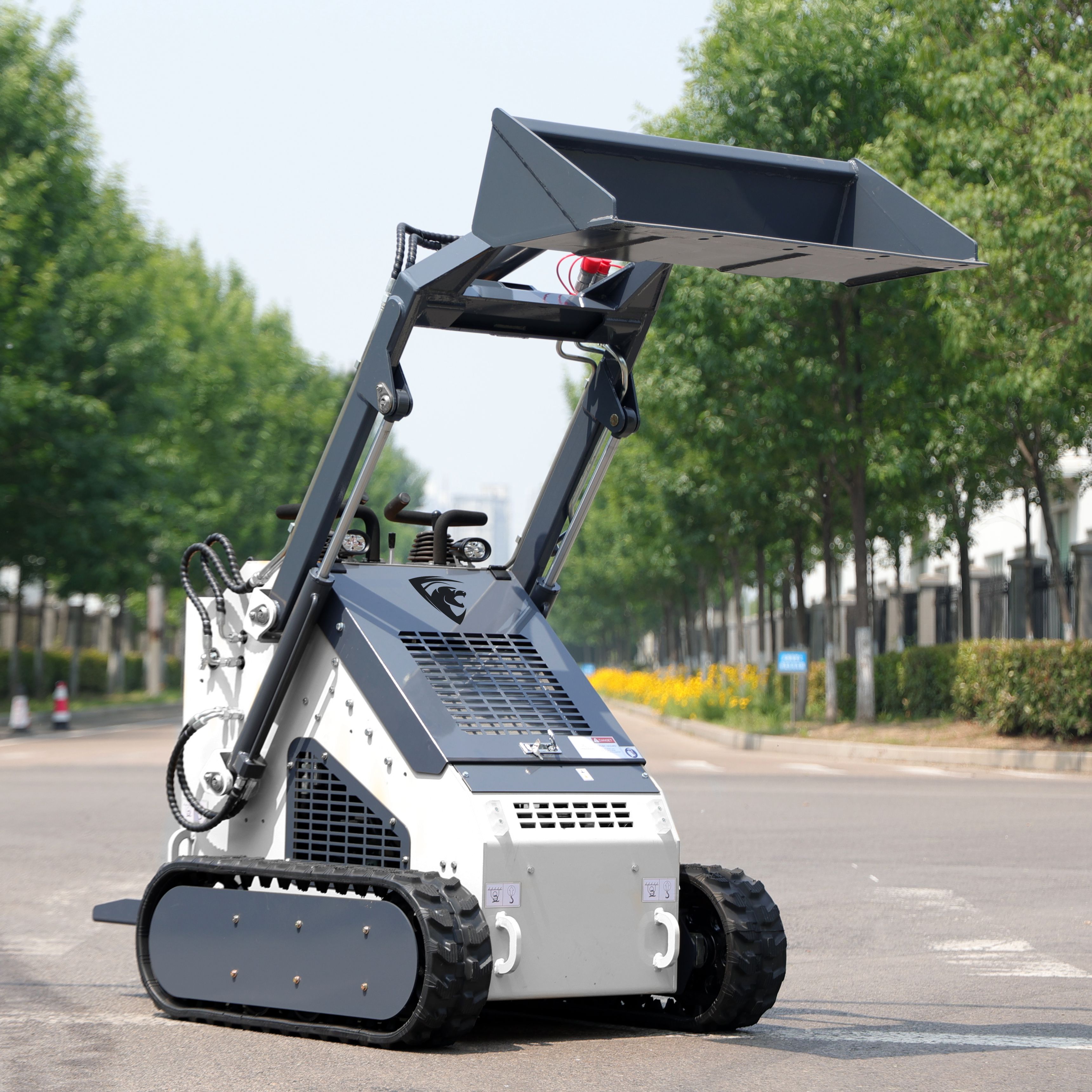

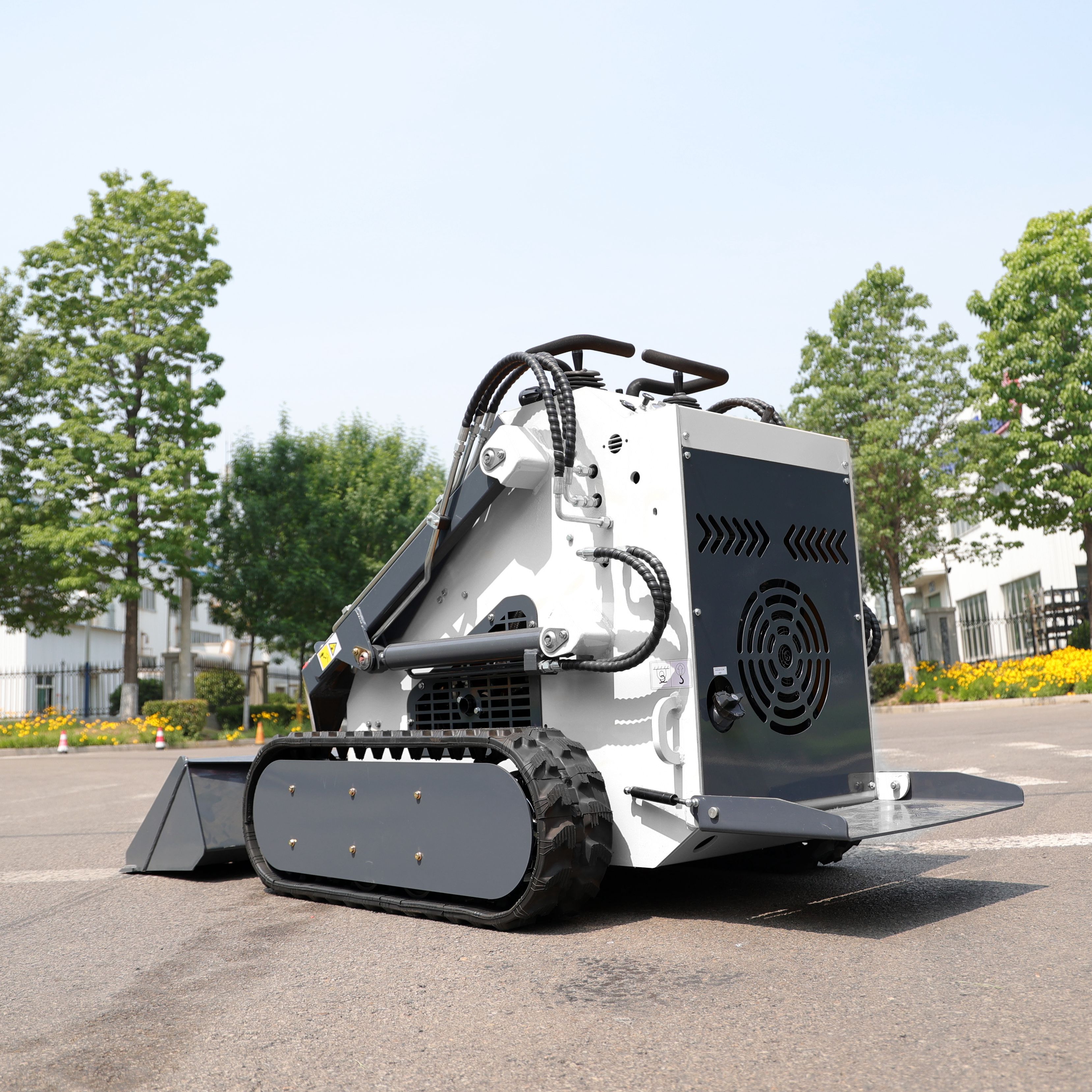

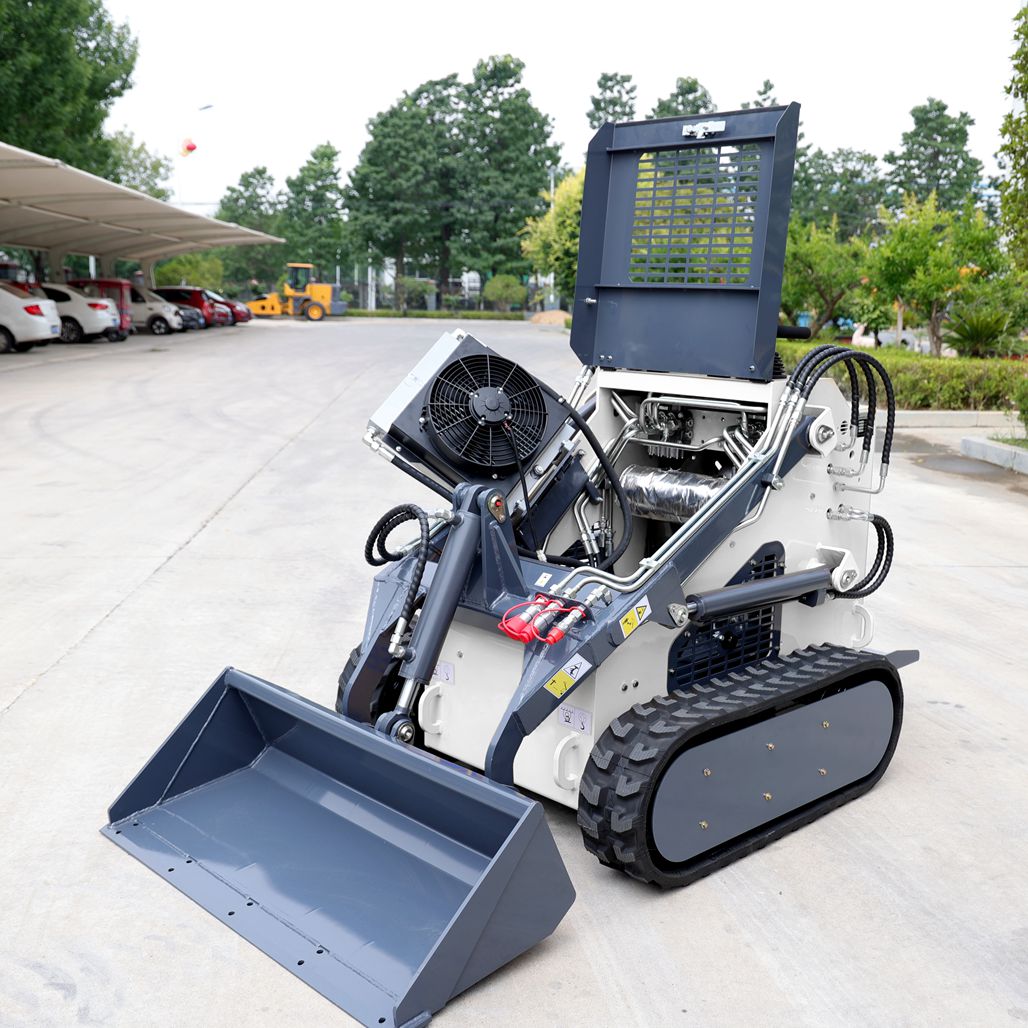

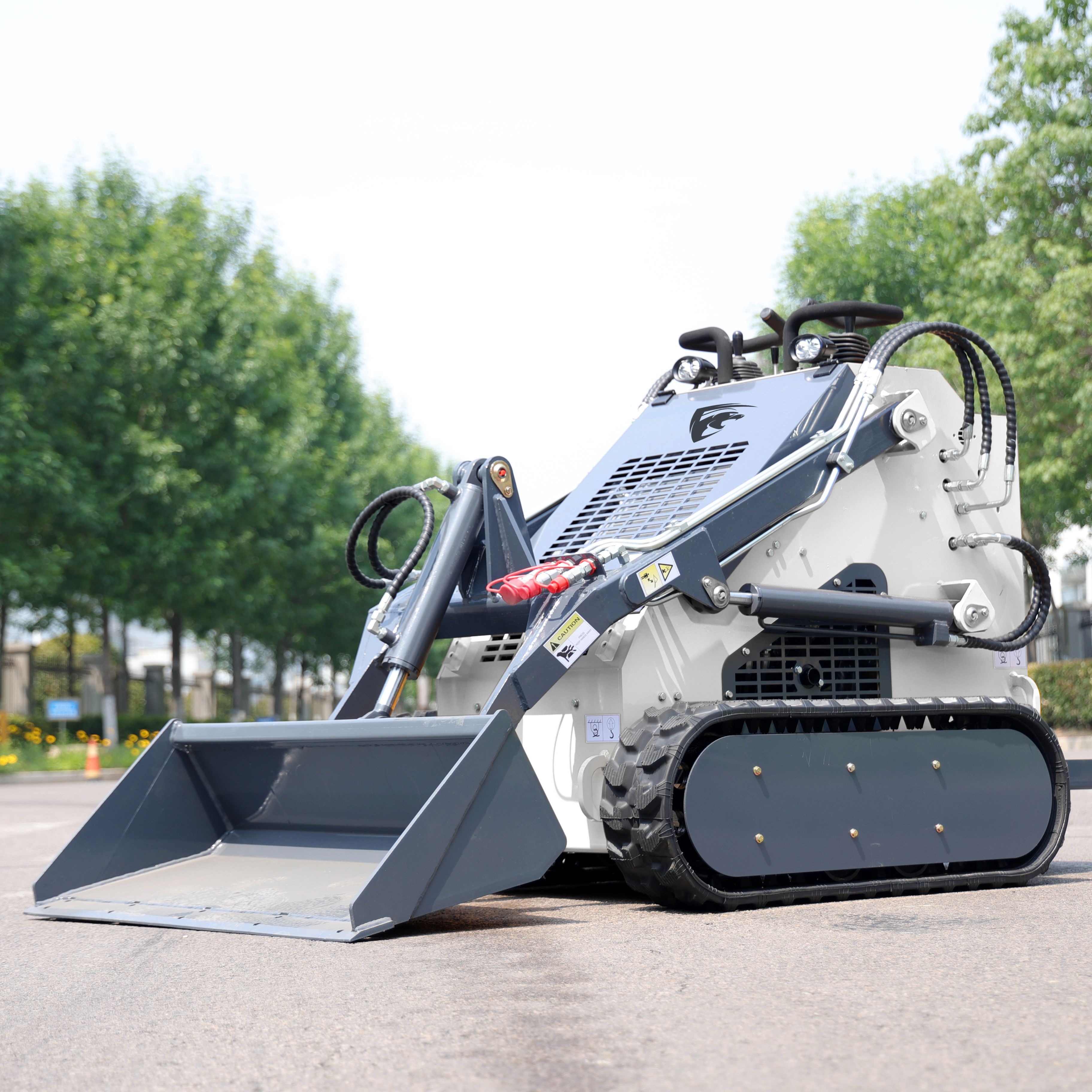

Mini Skid Steer

L380 GR
MSRP

$11,999

STANDARD FEATURES

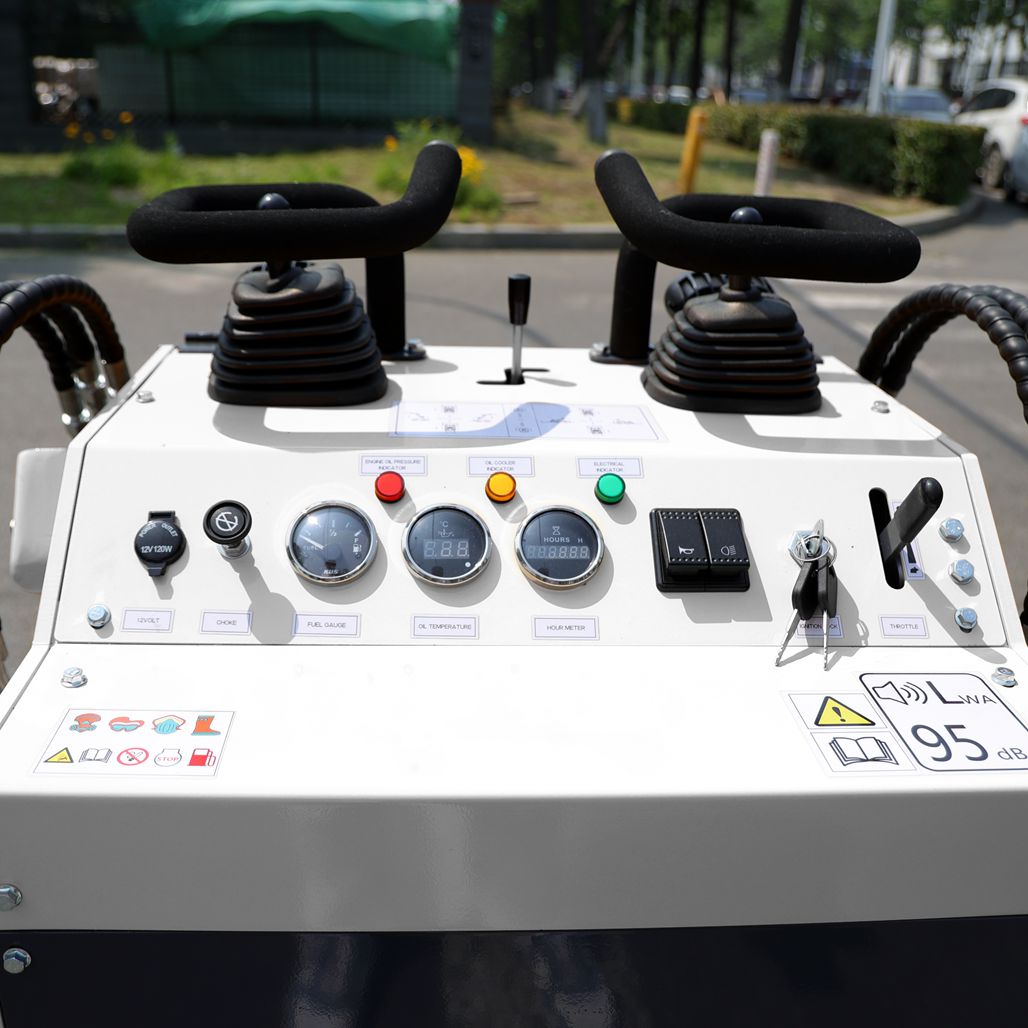

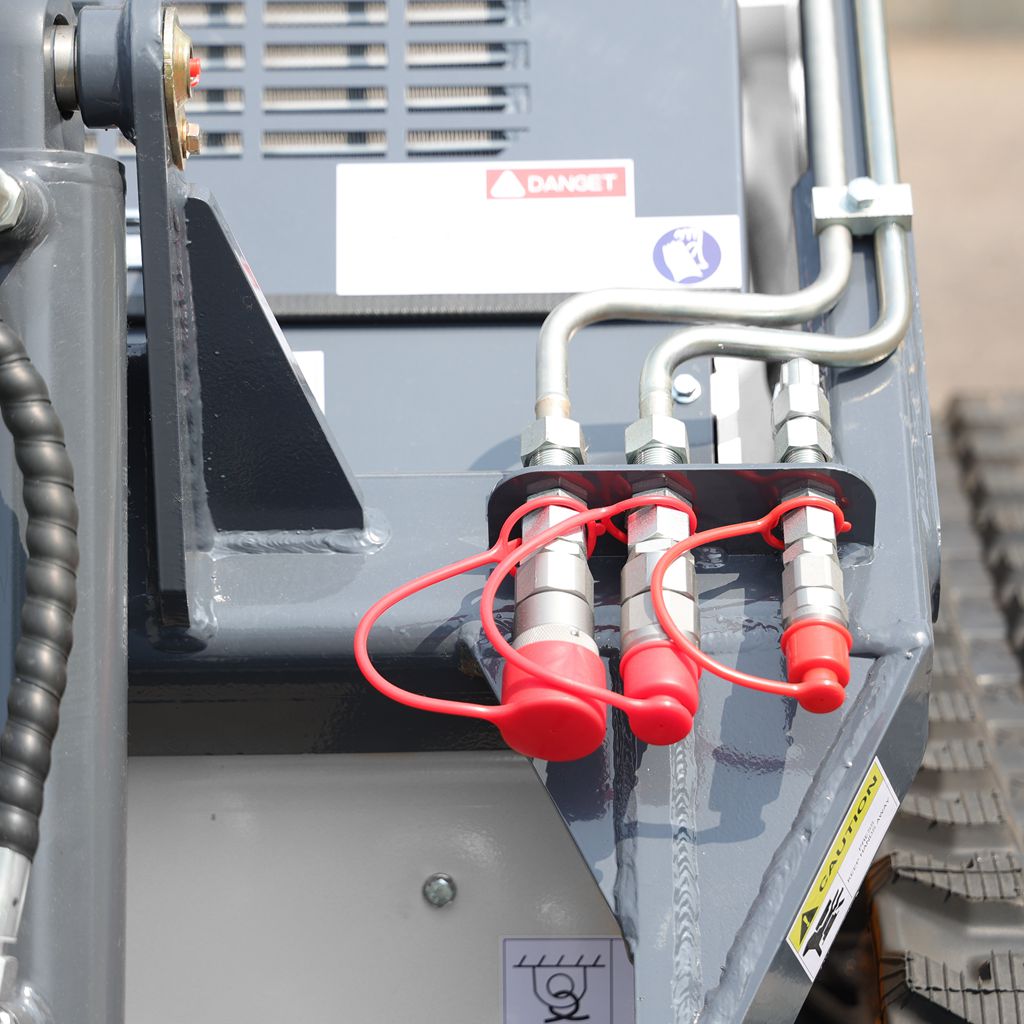

Joystick operation Max versatility Swiss army knife 1-way and 2-way primary auxiliary circuit Powerful Honda GXV690 engine
22 hp

Net Power

70"

Max lifting height

2100 lbs

Operating Weight

800 lbs

Max lifting force

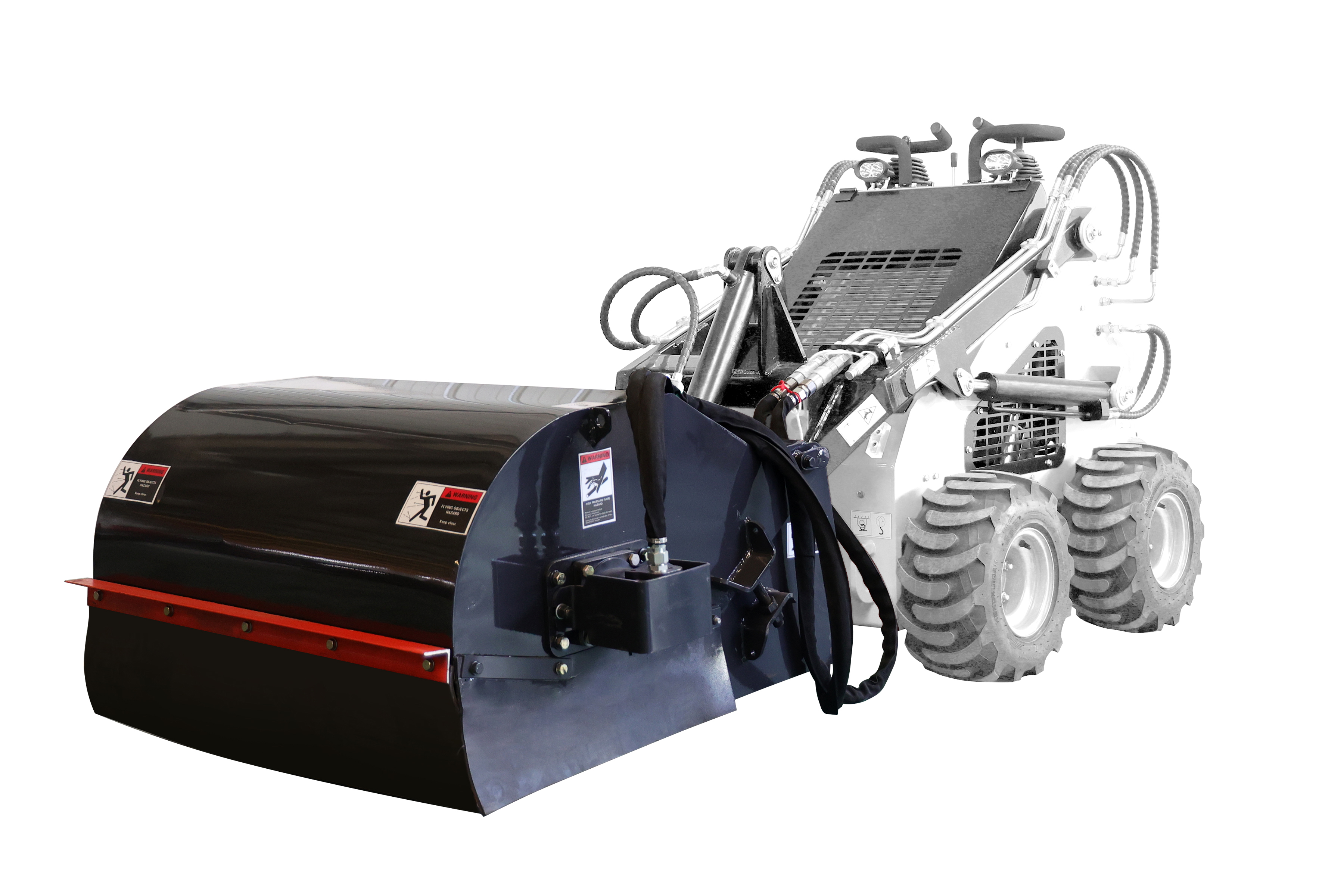

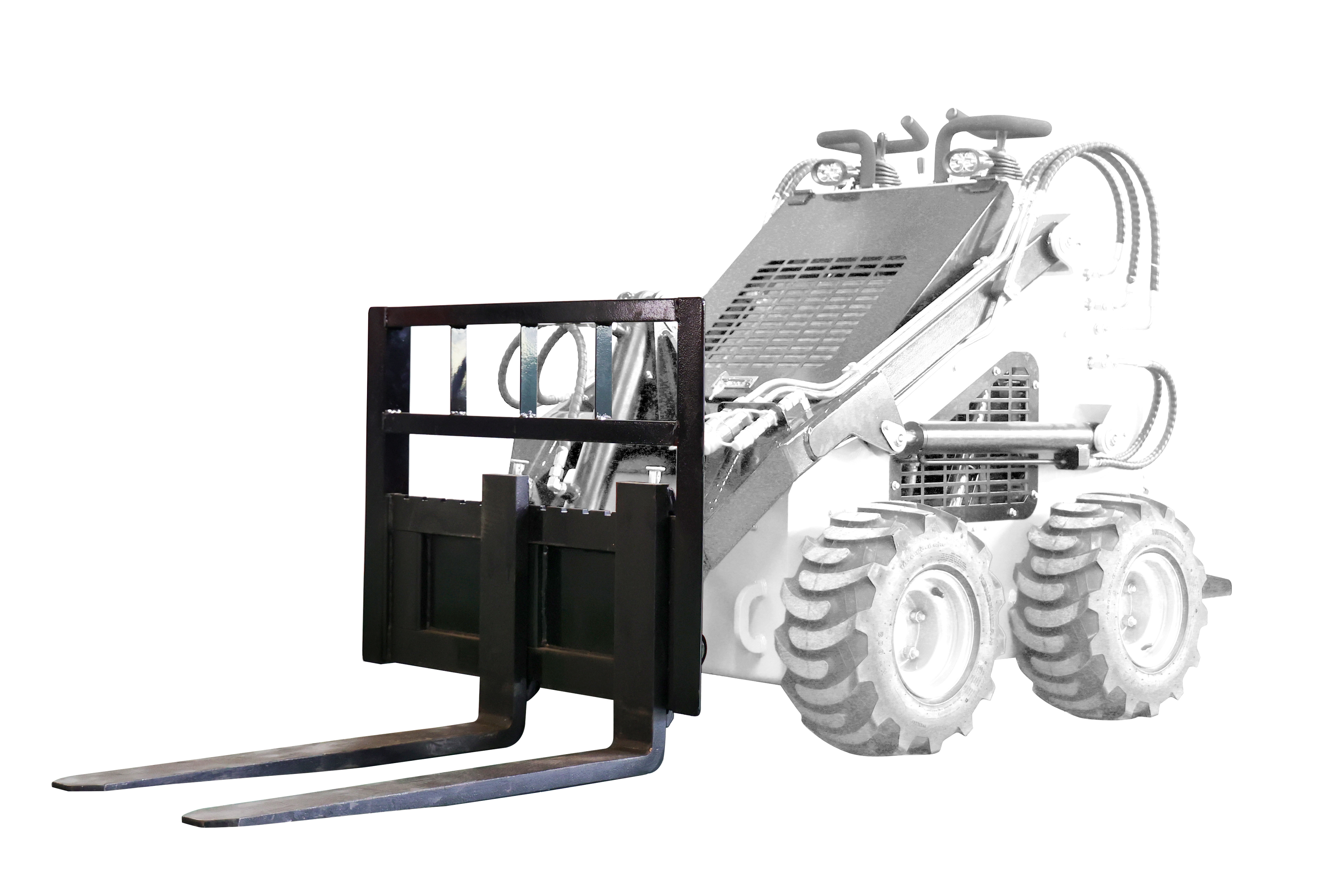

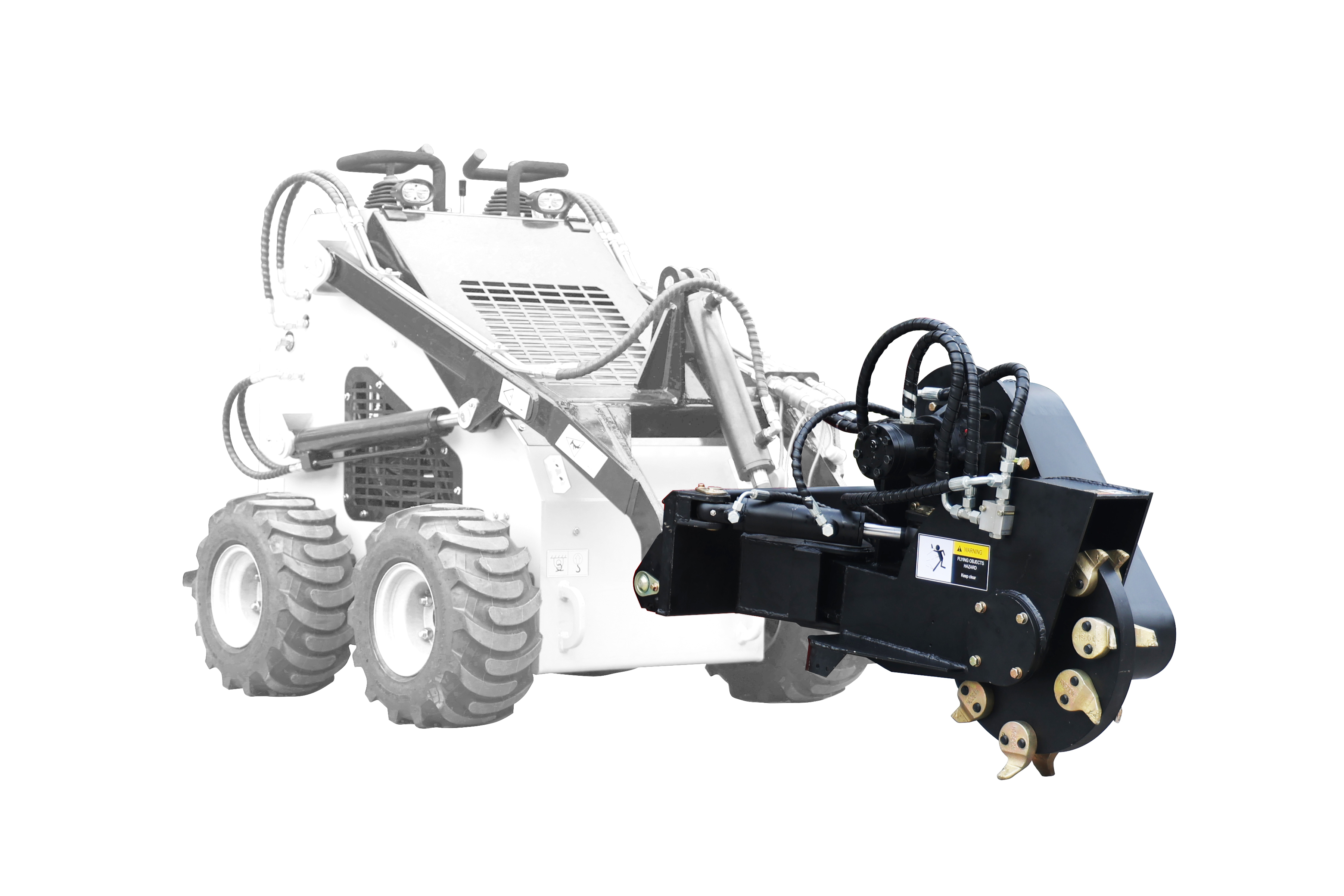

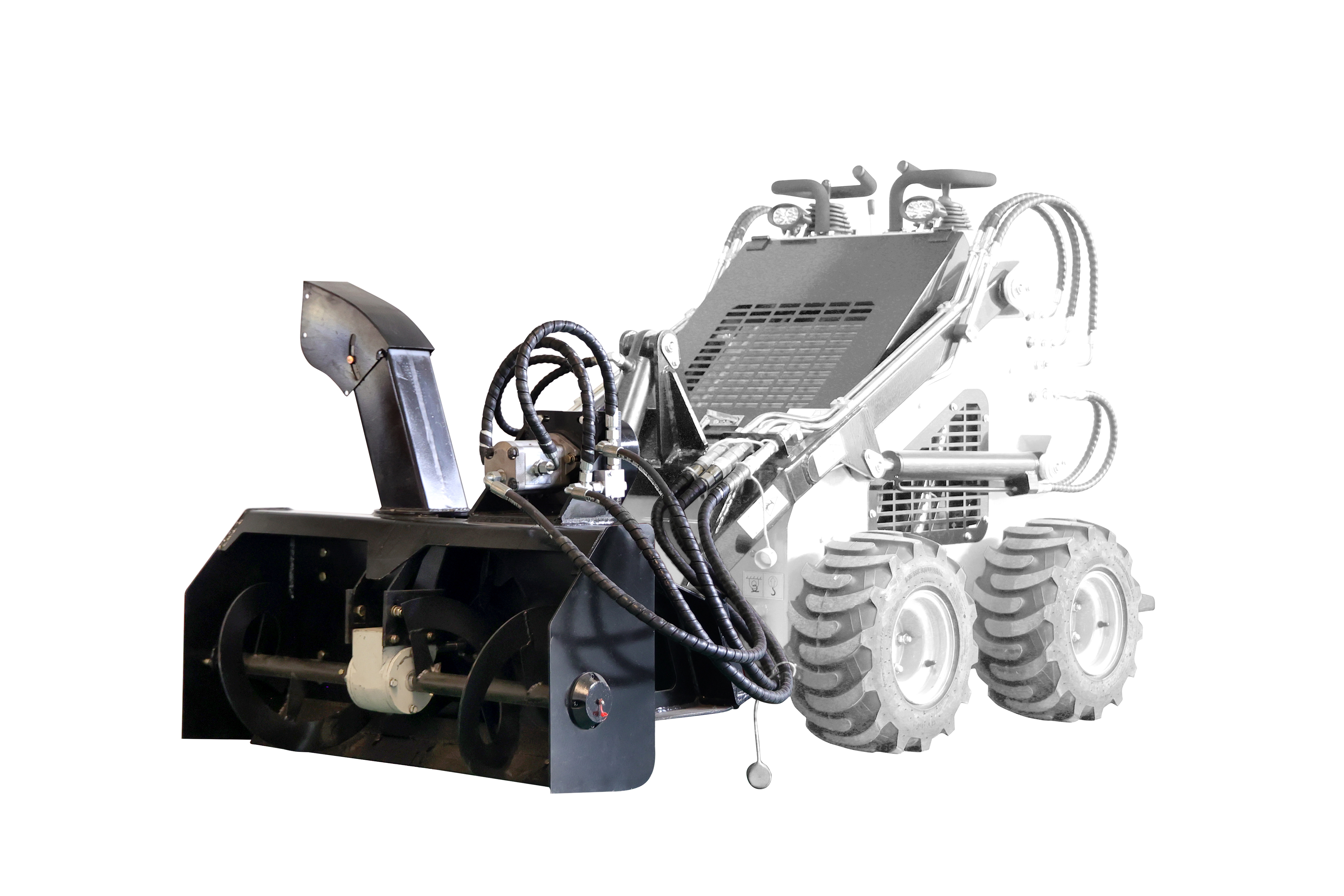

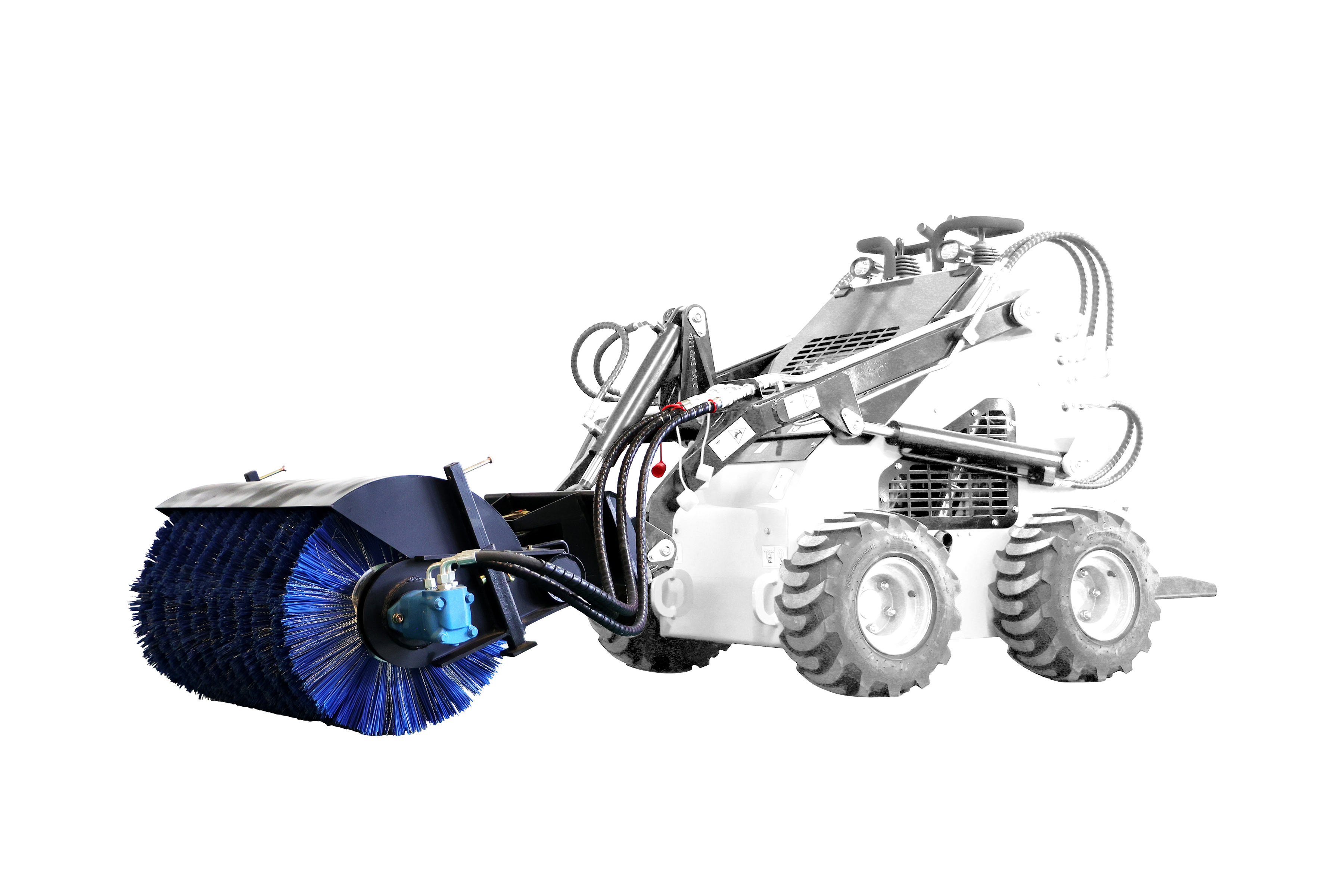

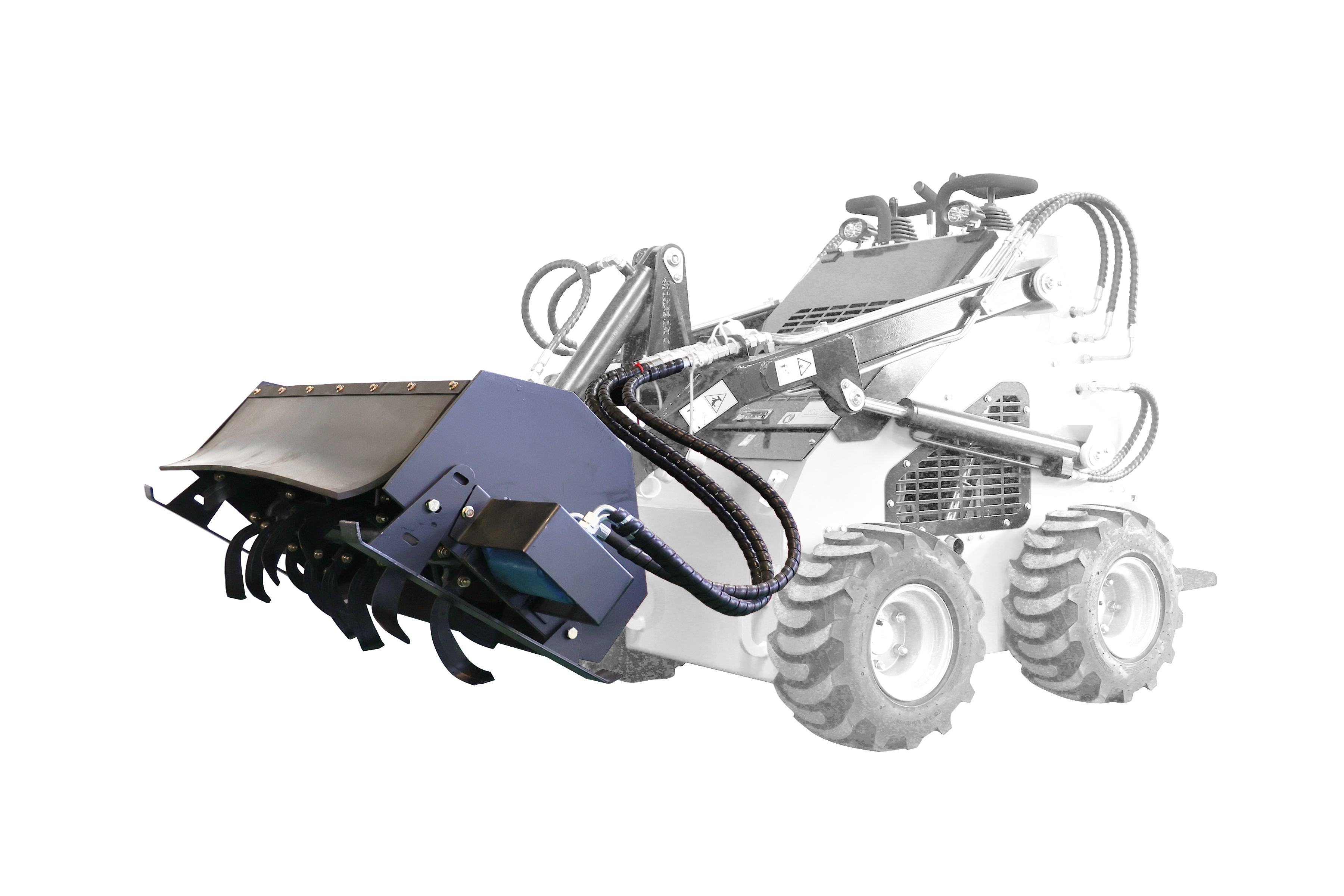

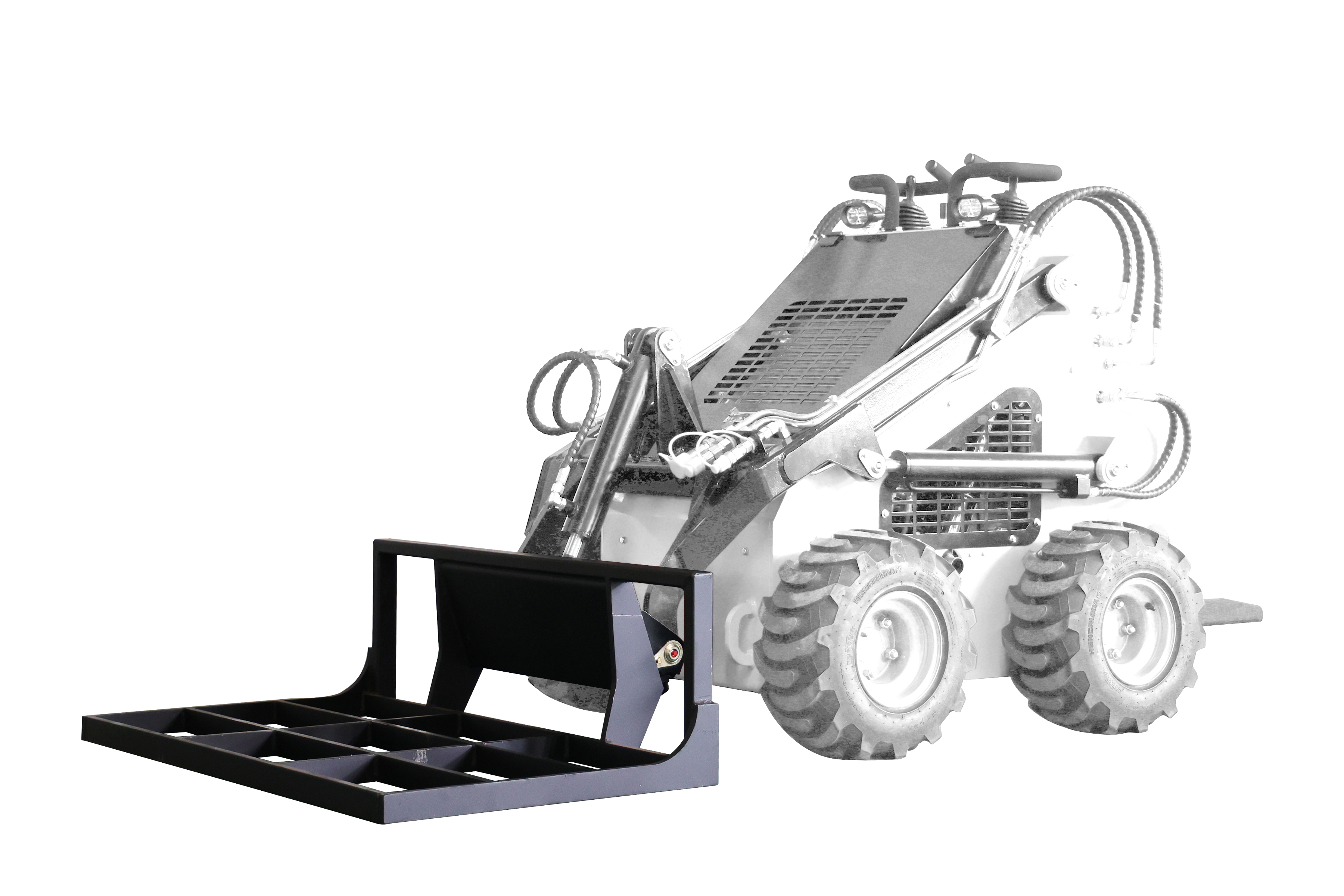

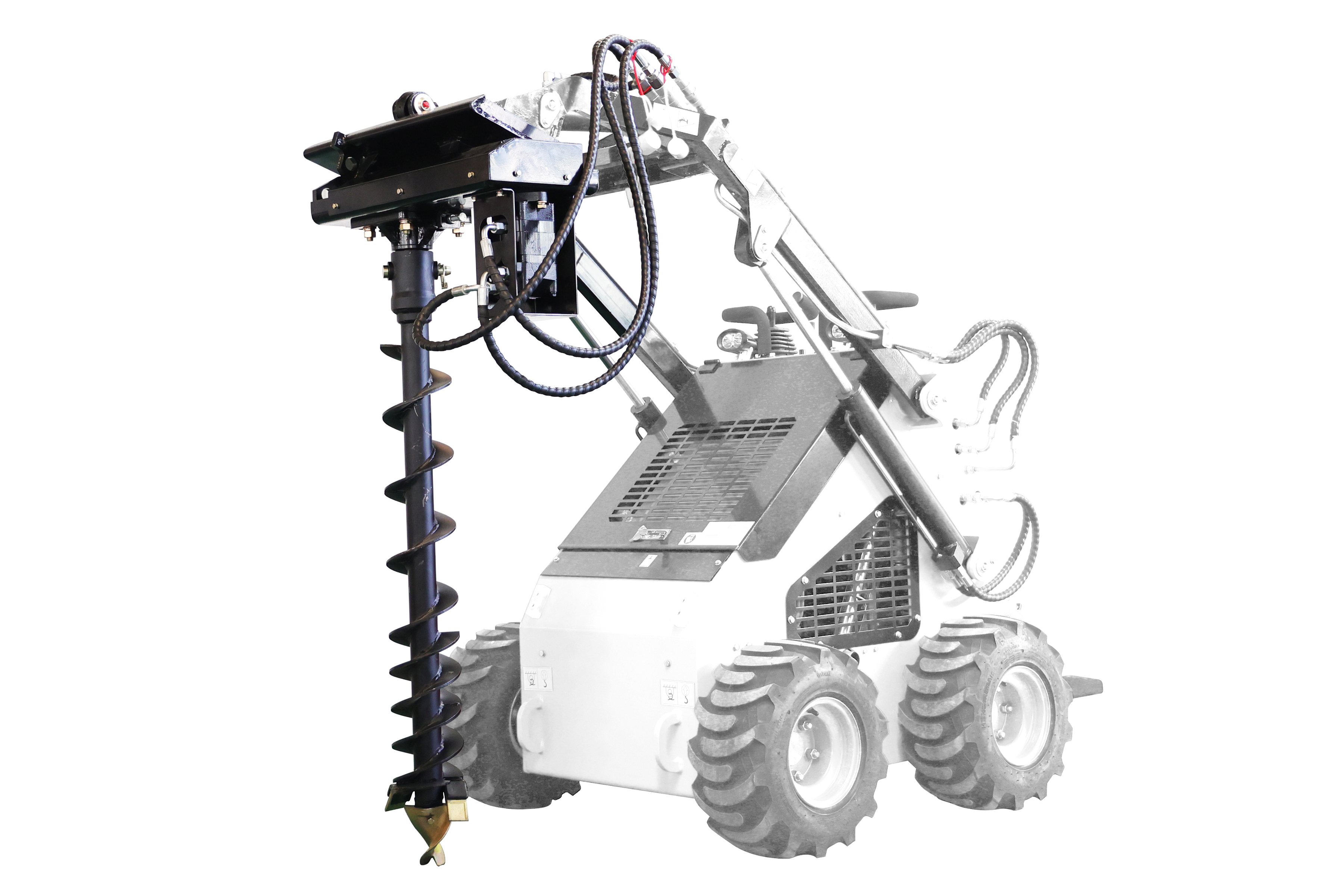

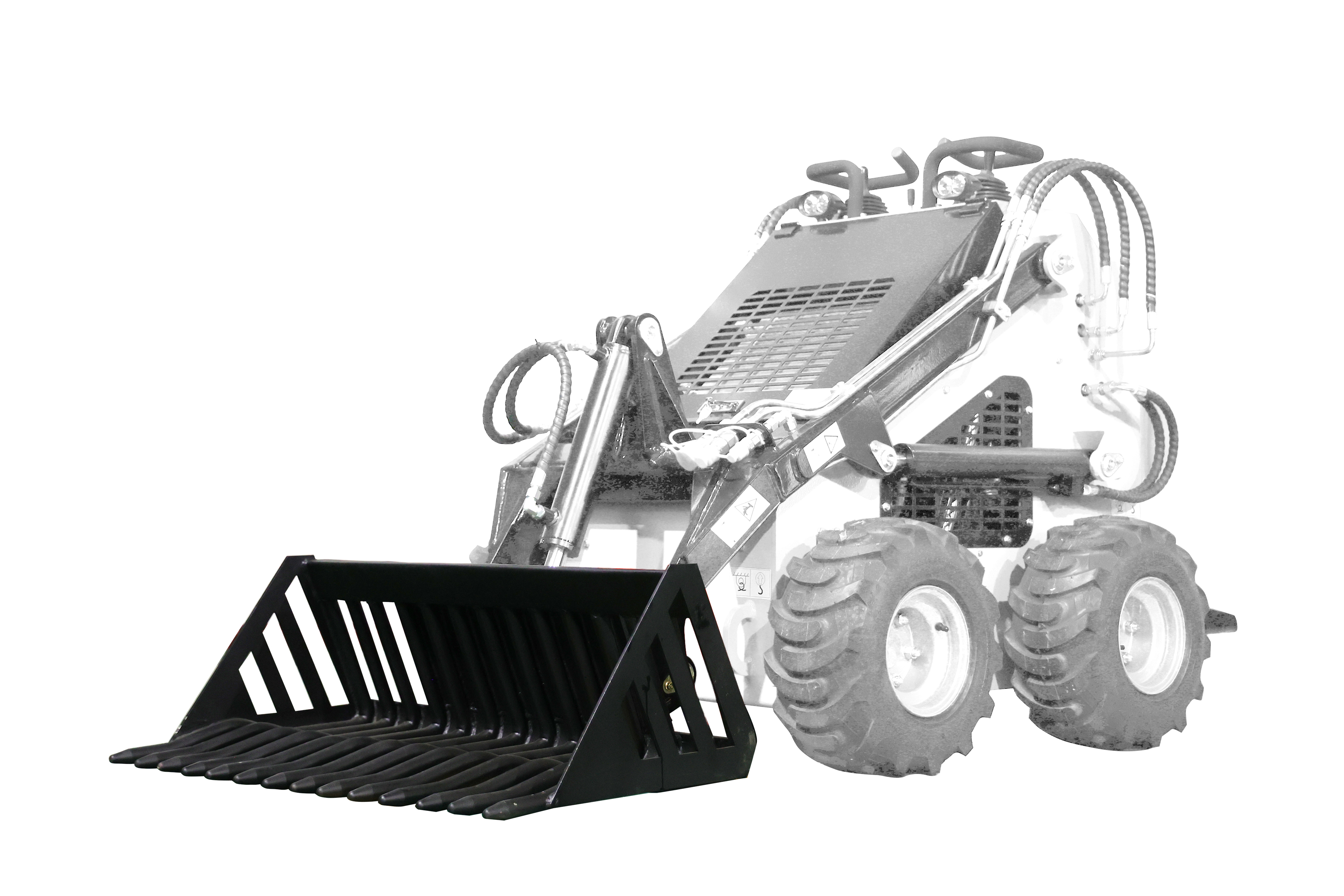

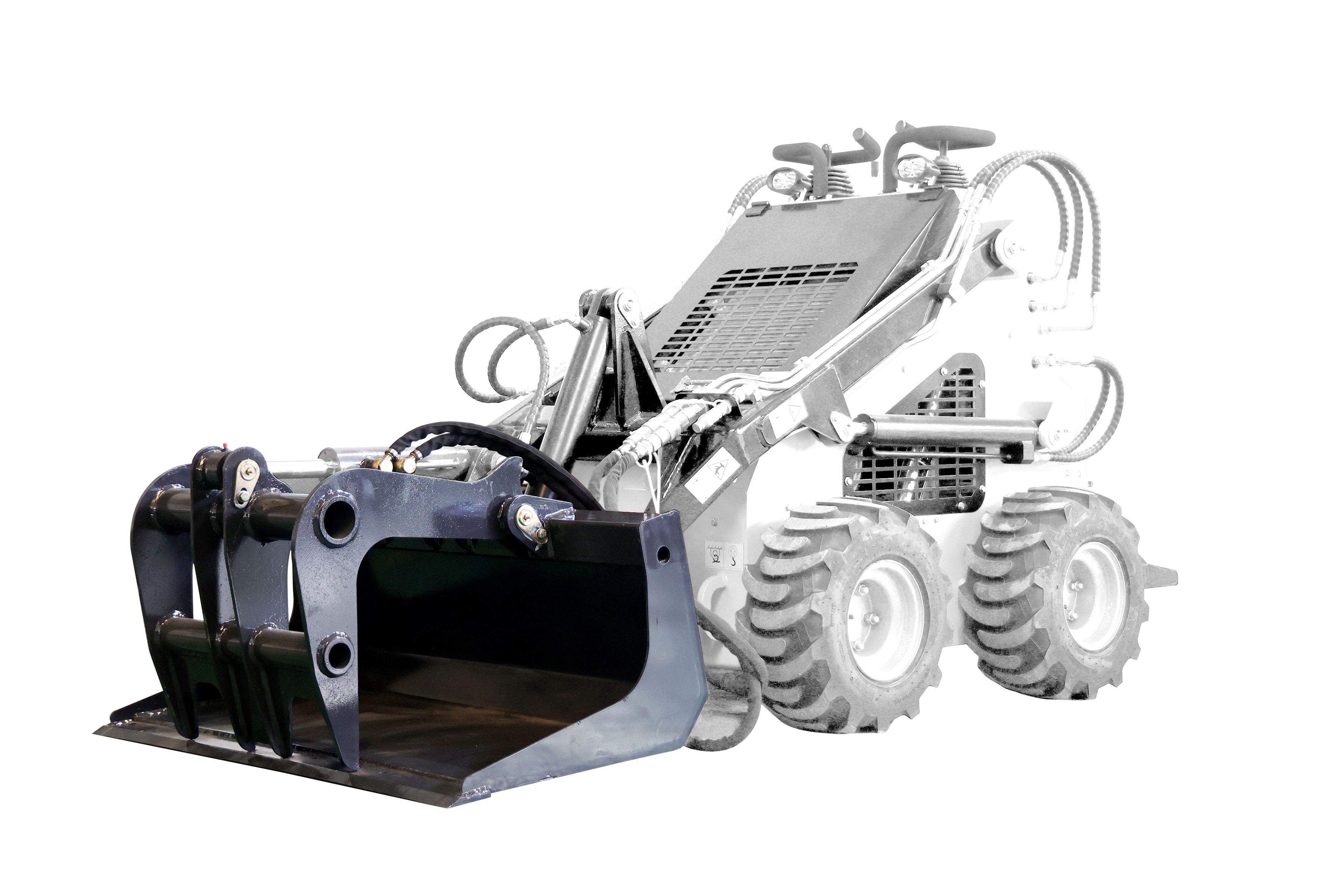

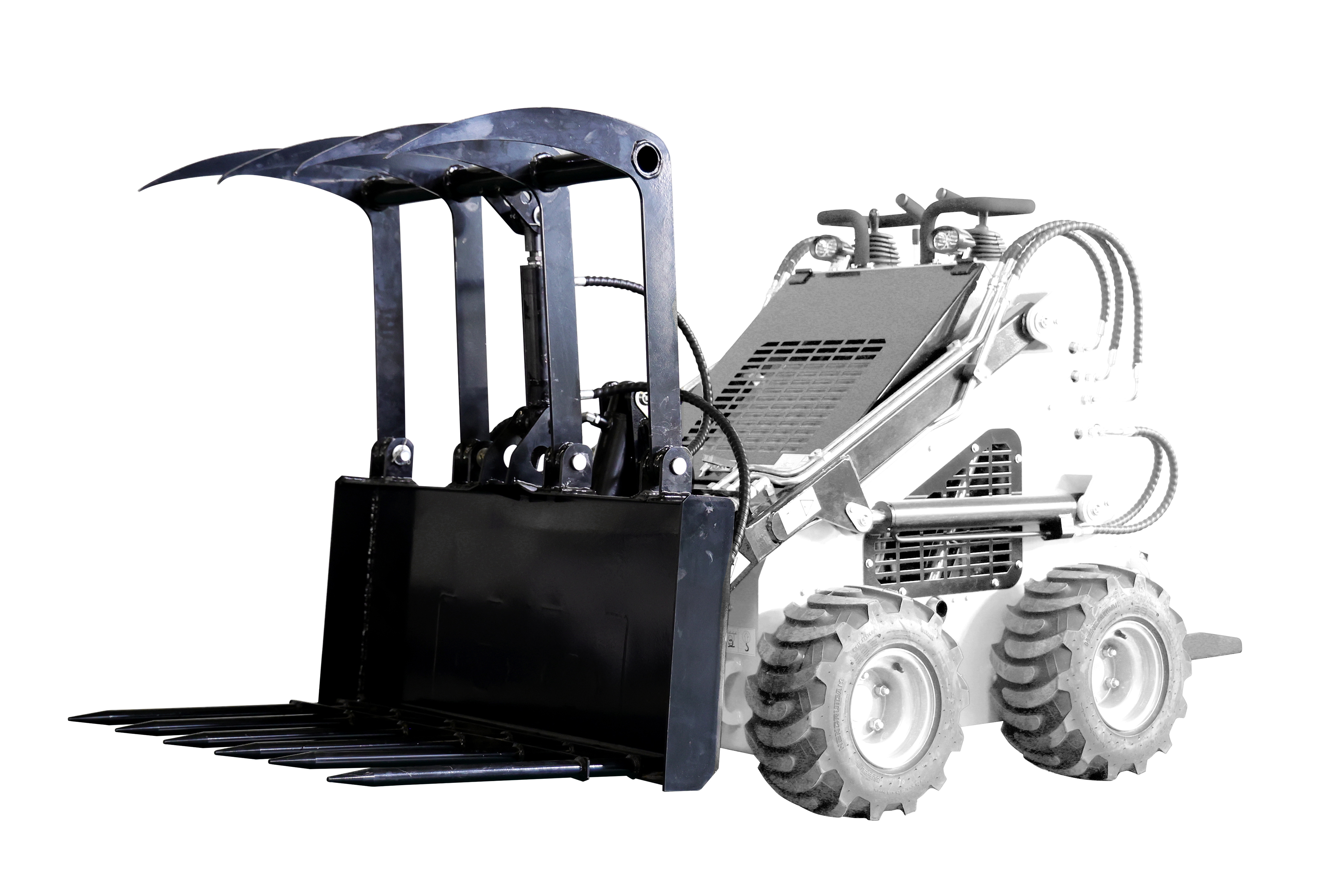

    Attachments

PRODUCT SPECIFICATIONS L380 GR

Performance Parameters
  Metrics Unit Standard Unit
Operaiting Load 200 kg 440 lbs
Bucket capacity 0.15 cf 5.3 cf
Max lifting Force 375 kg 825 lbs
Max travel speed 5 km/h 3.125 mph
Hydraulic pressue 17 Mpa 17 Mpa
Raise Time 3.3 s 3.3 s
Lower time 1.5 s 1.5 s
Dump time 1.5 s 1.5 s

Fluid capacity
  Metrics Unit Standard Unit
Fuel 25 L 6.8 Gallon
Motor oil 1.7 L 0.5 Gallon
Hydraulic oil 25 L 6.8 Gallon
