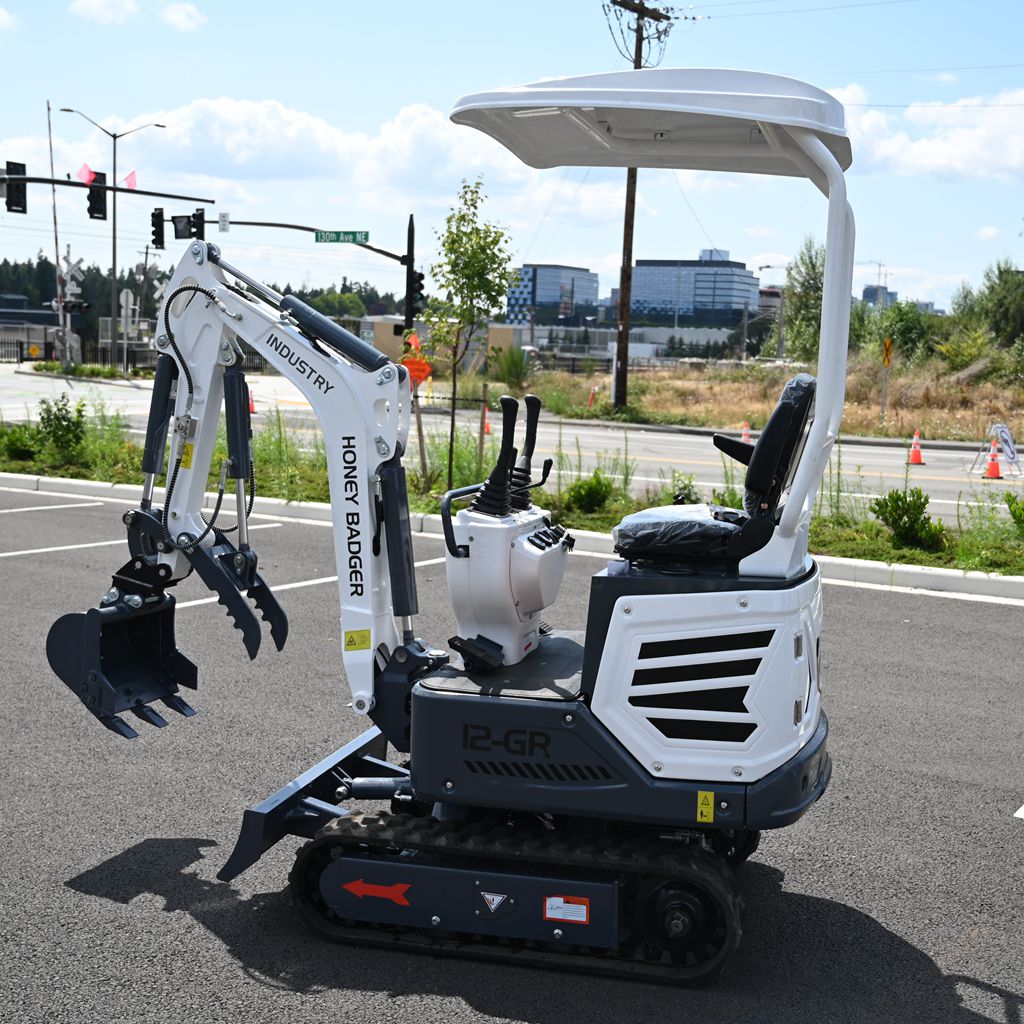

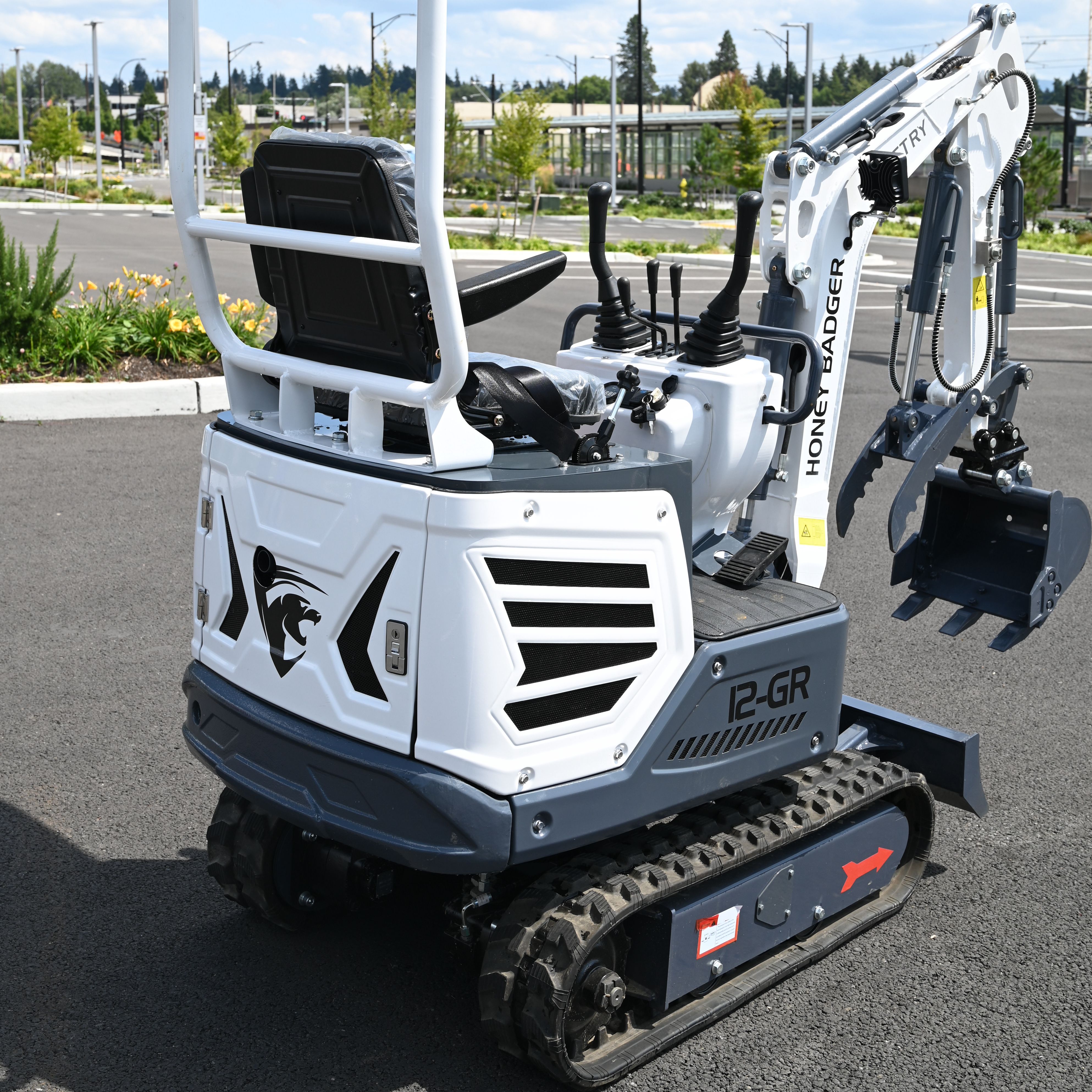

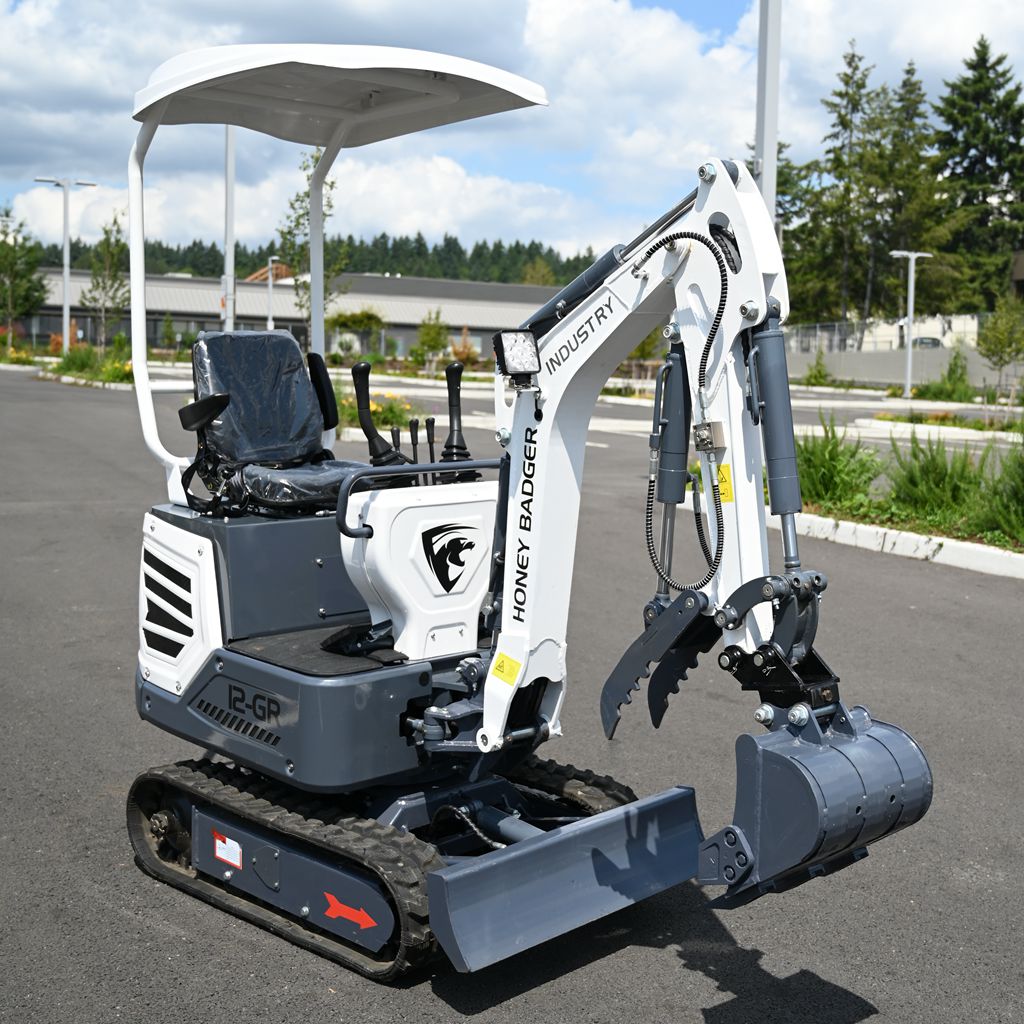

Mini Excavator

12GR
MSRP

$10,999

STANDARD FEATURES

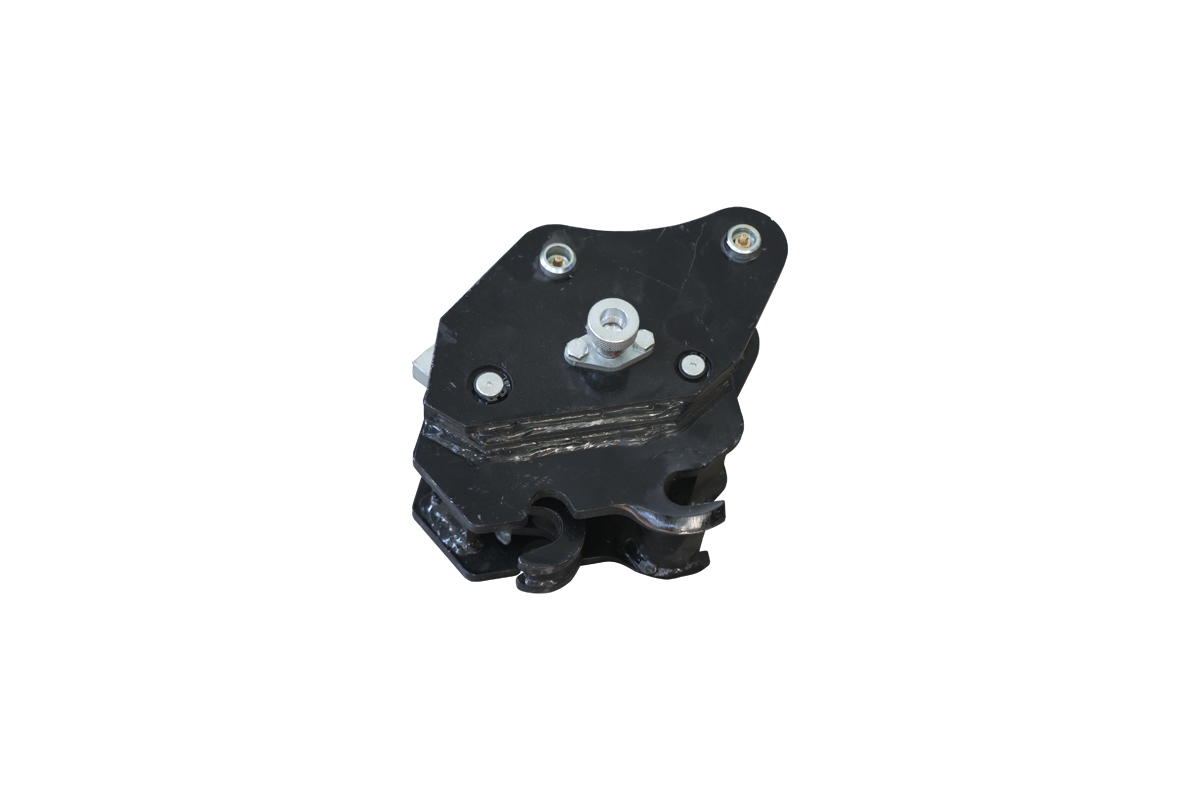

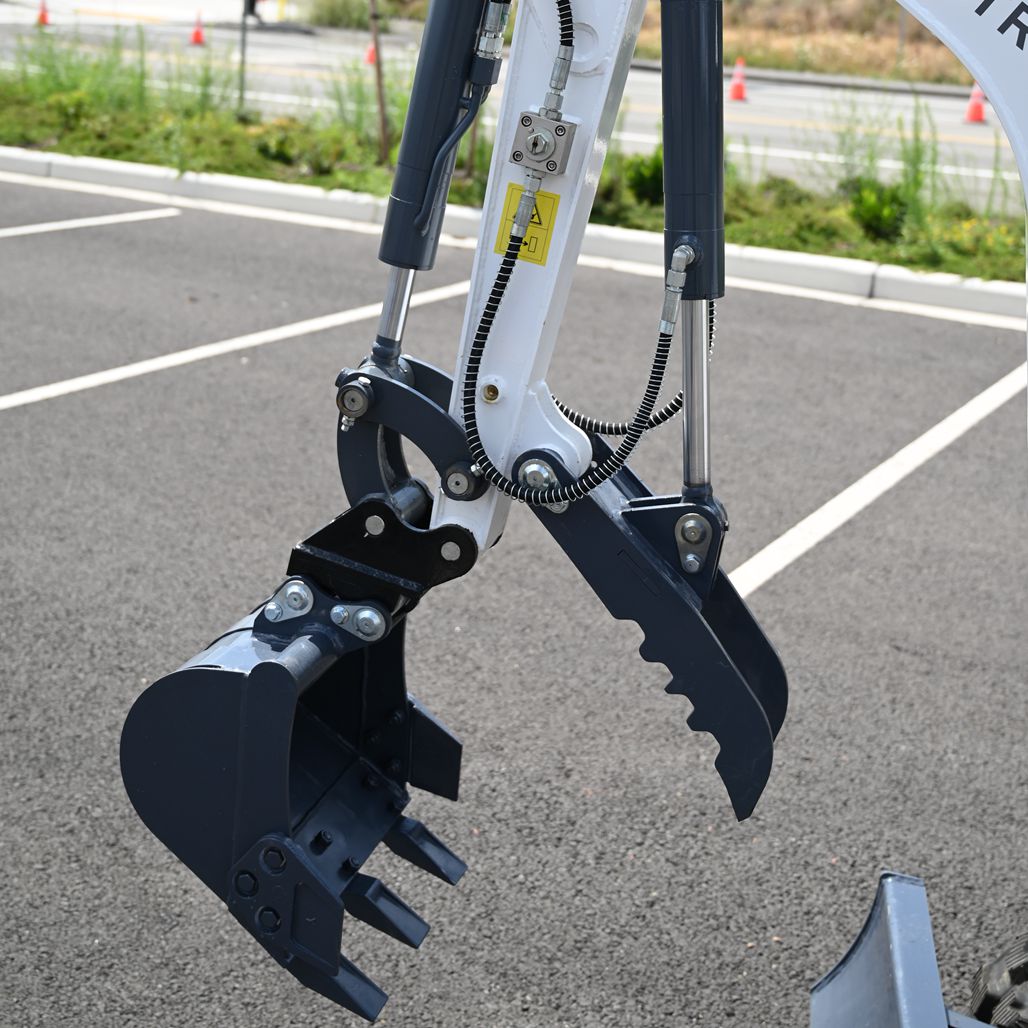

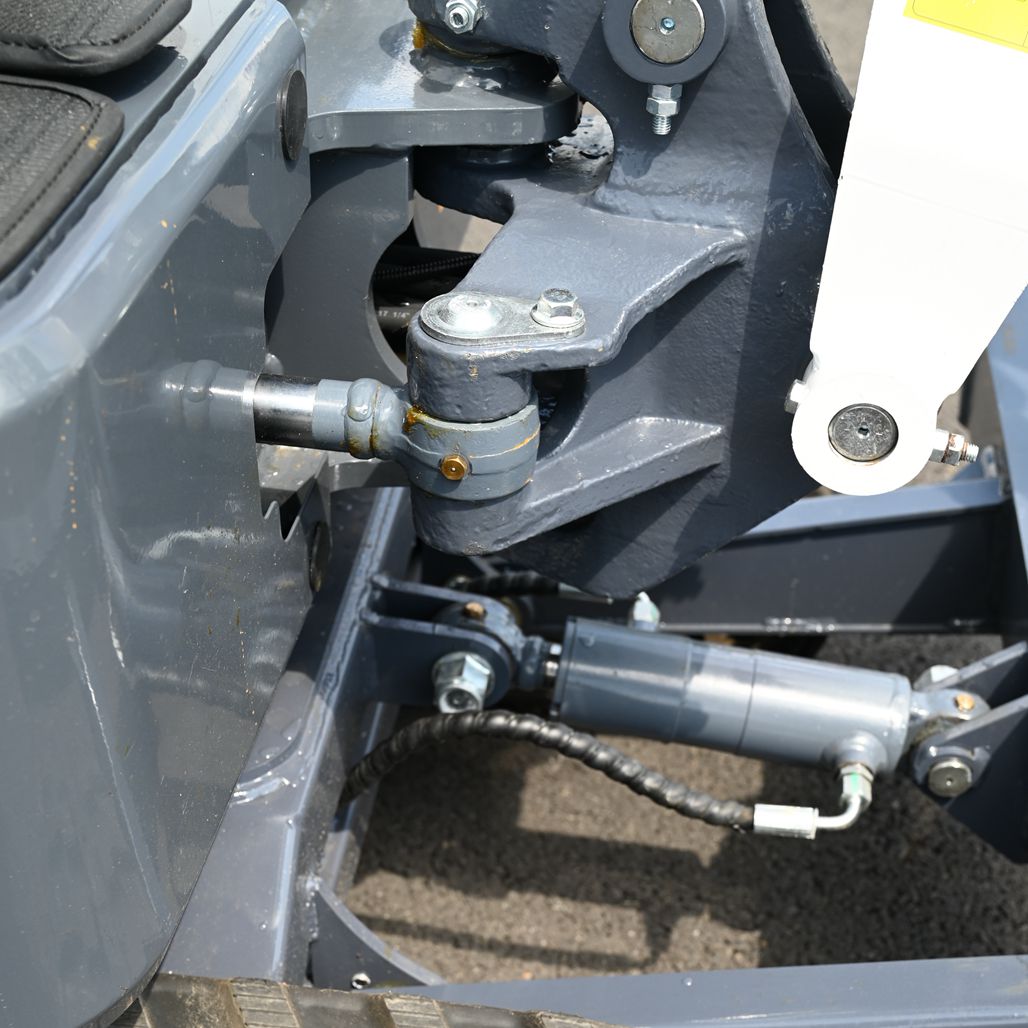

Forged swing boom pivot Hydraulic thumb Zero tail swing 1-way and 2-way primary auxiliary circuit Quick Coupler plumbing to end of stick Powerful 500 CC gas engine Honda replica 19 HP
19 hp

Net Power

72"

Dig Depth

2400 lbs

Operating Weight

1800 lbs

Bucket Breakout Force

2000 lbs

Lift Capacity

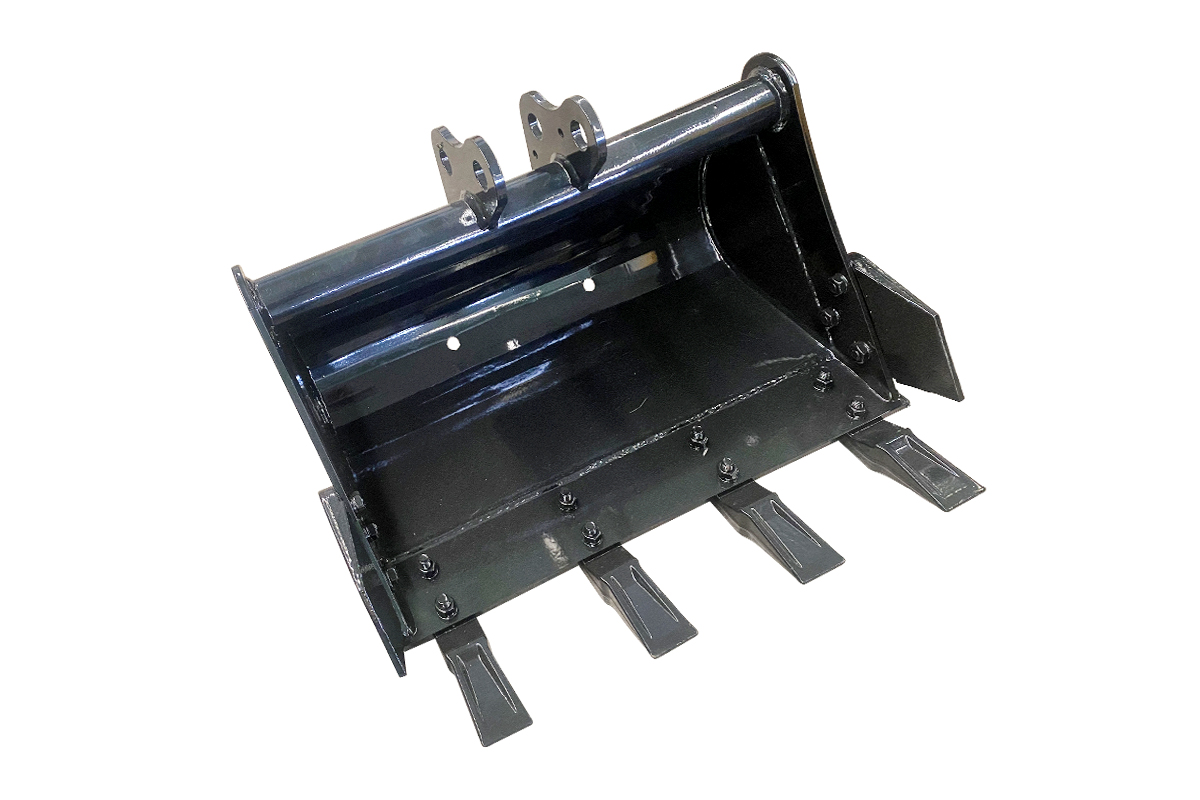

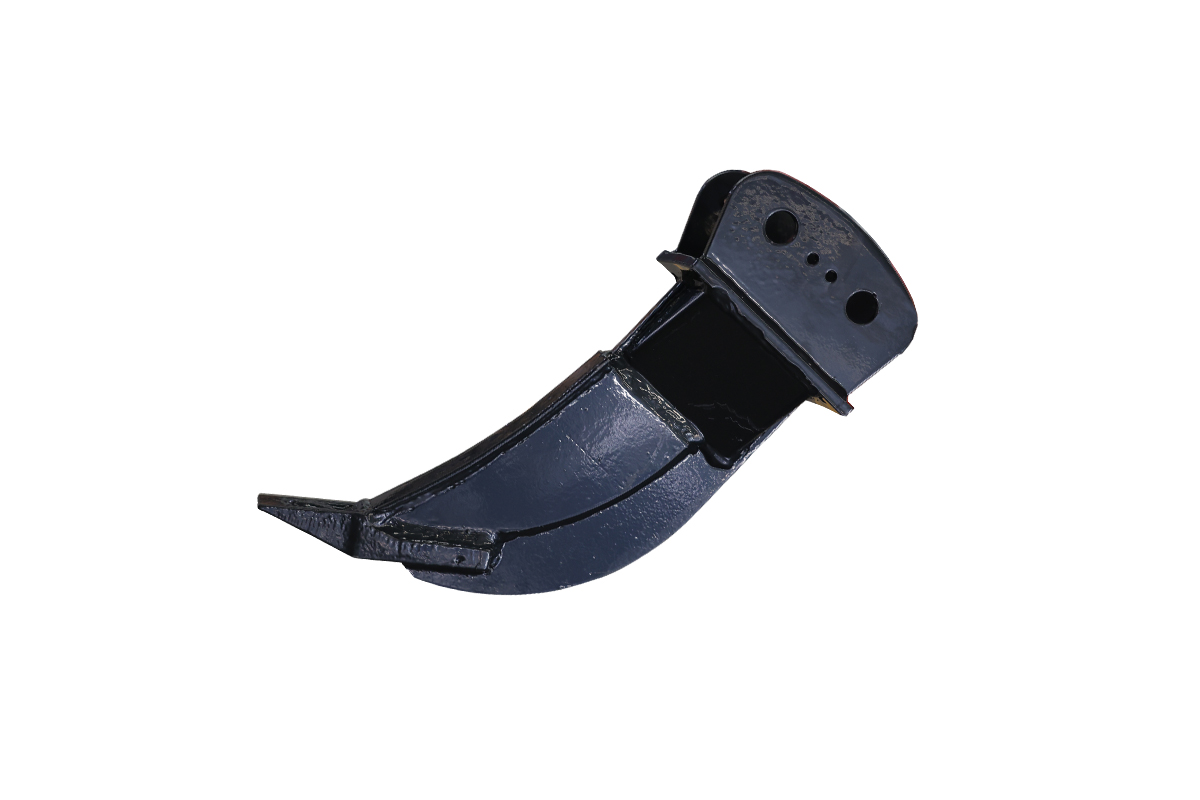

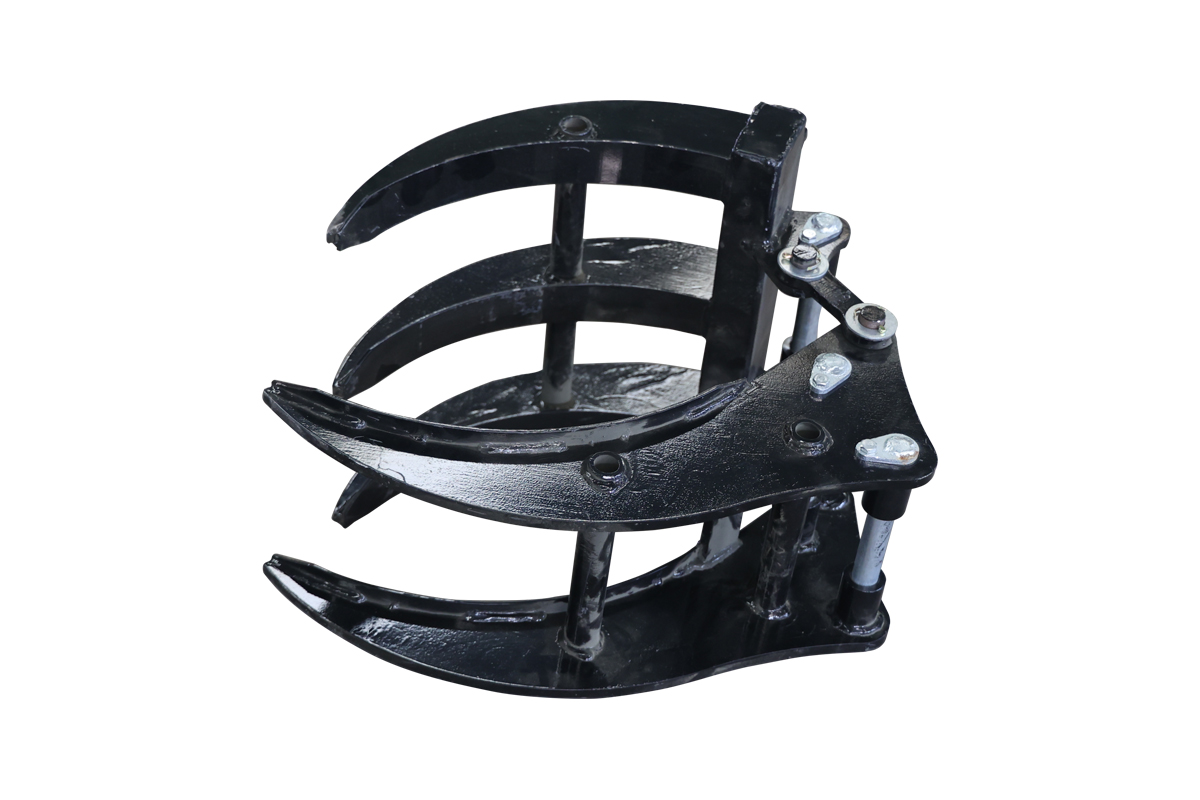

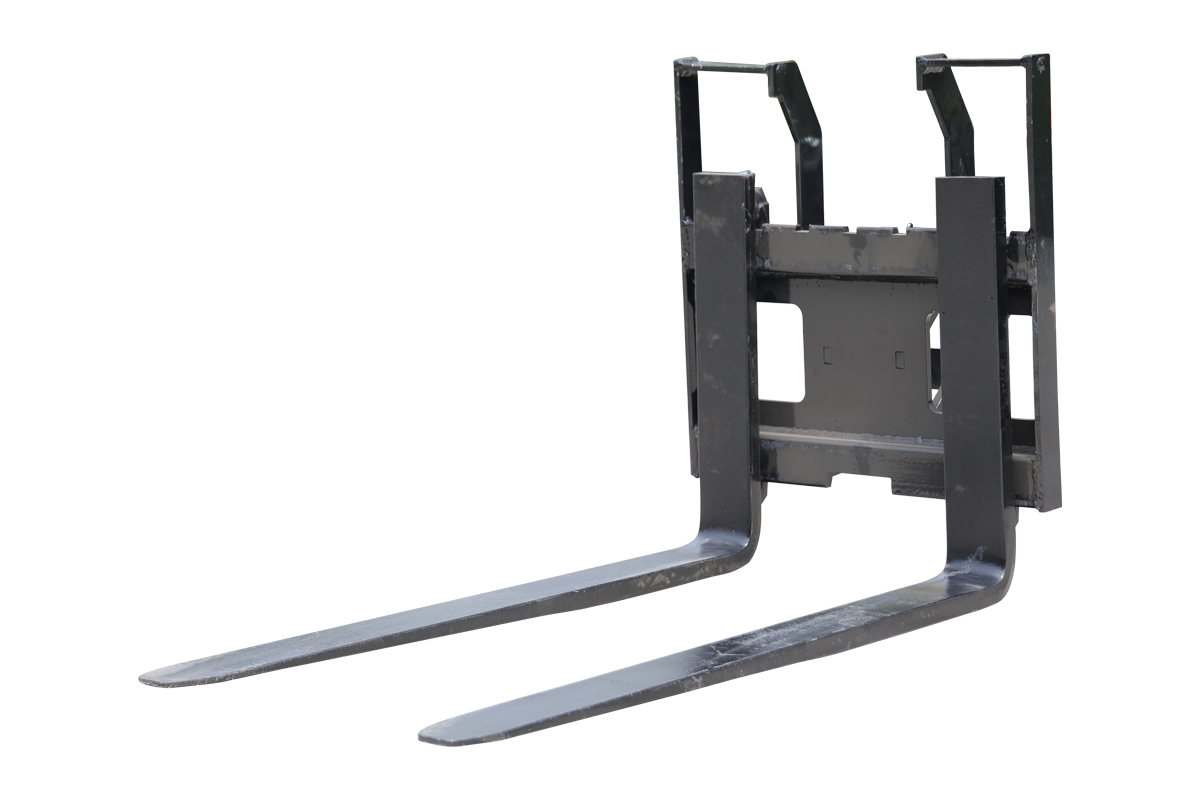

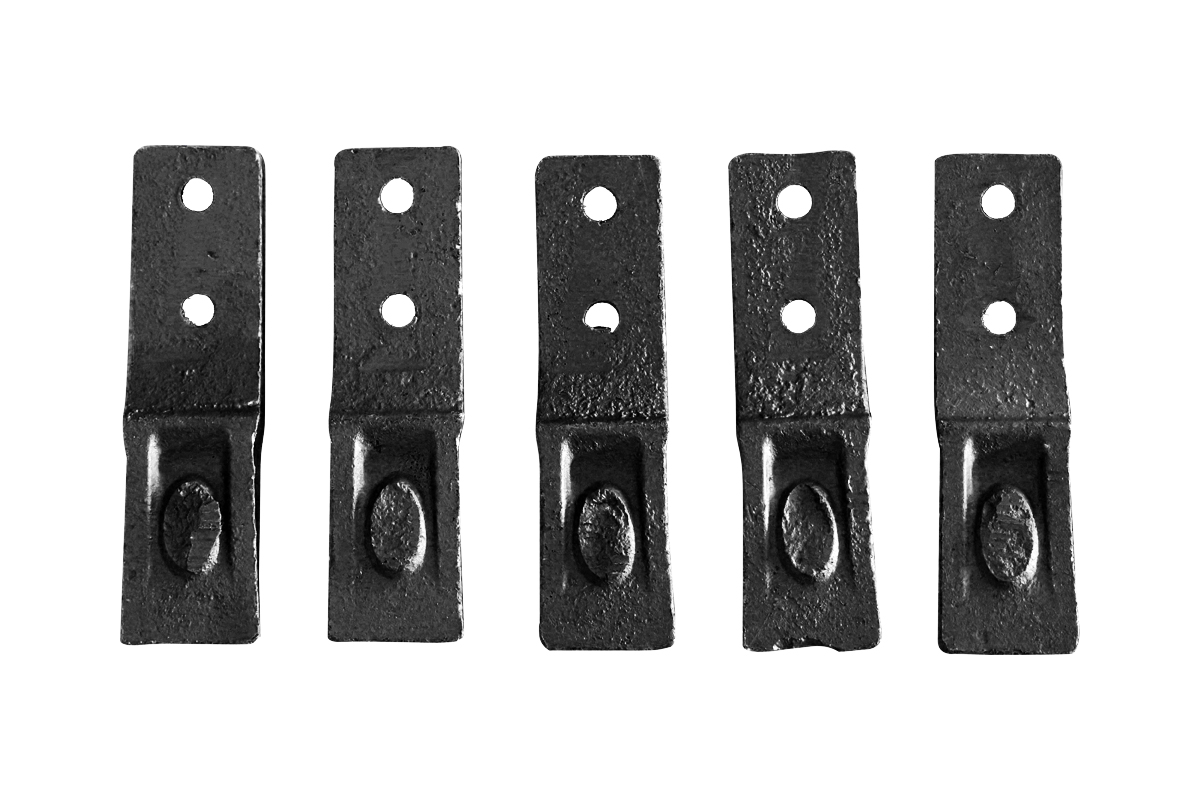

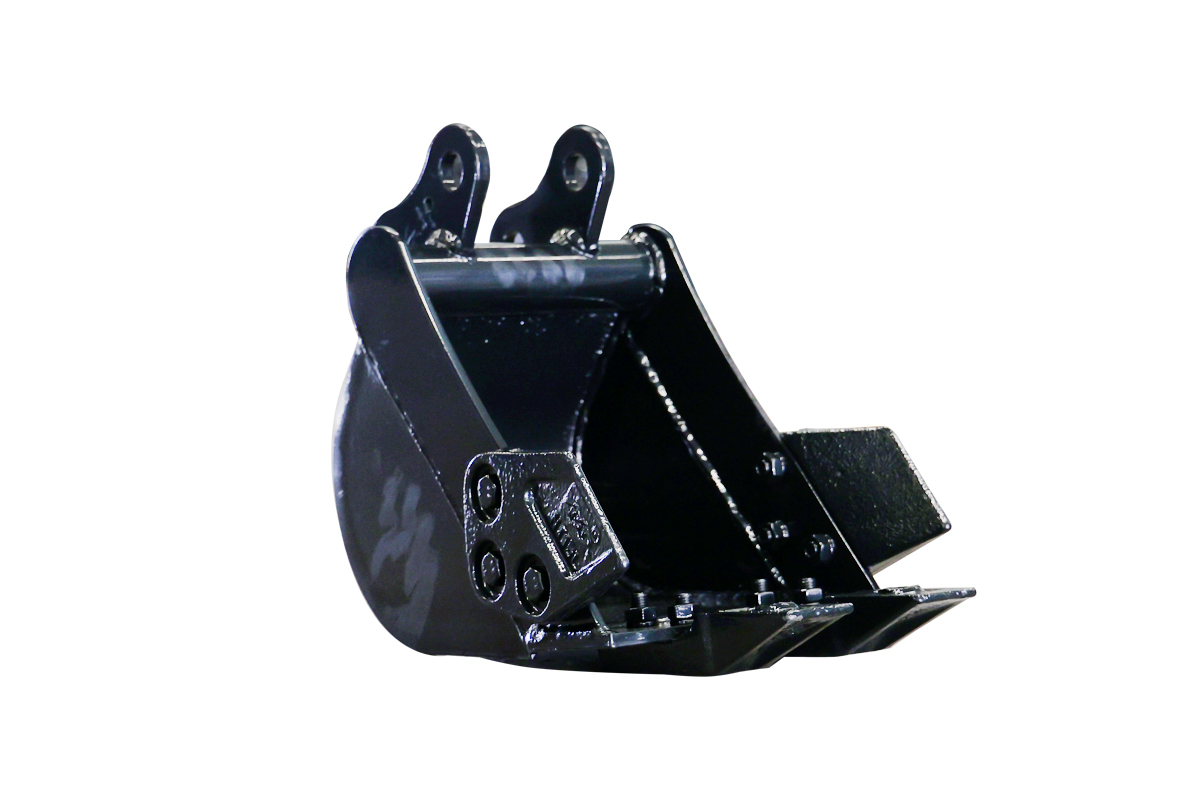

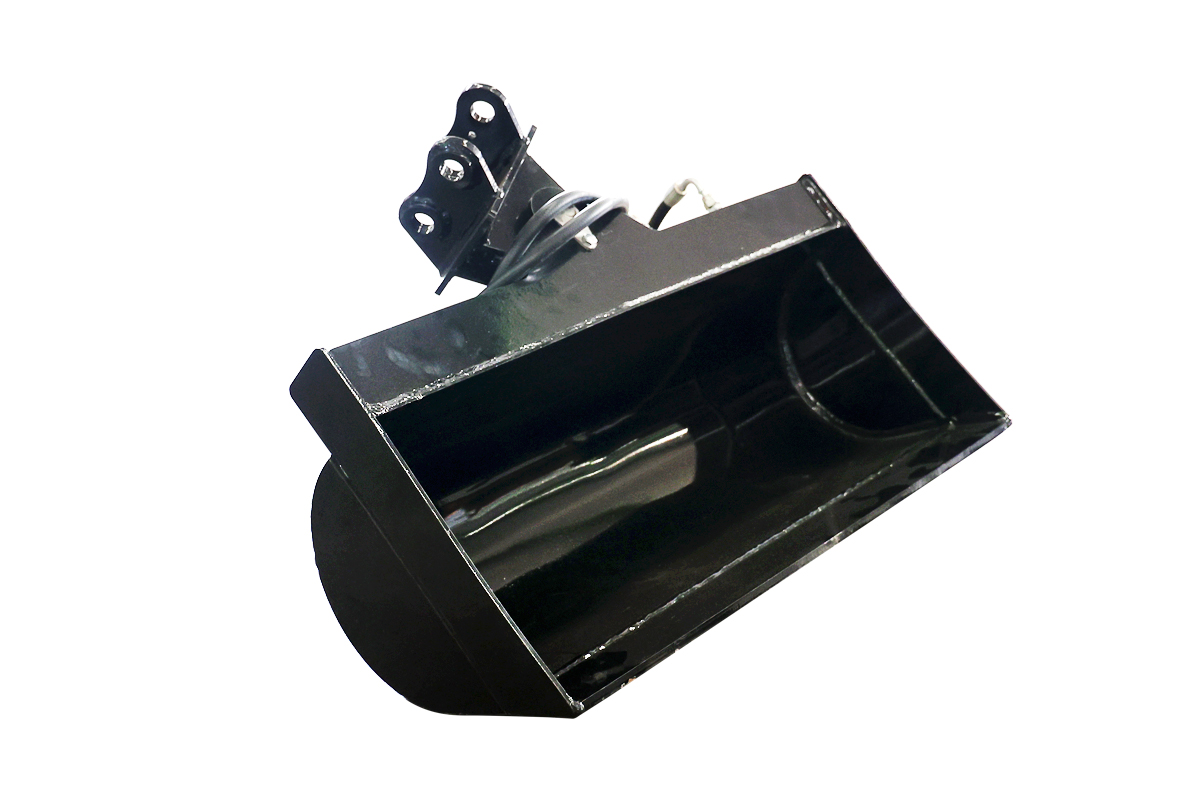

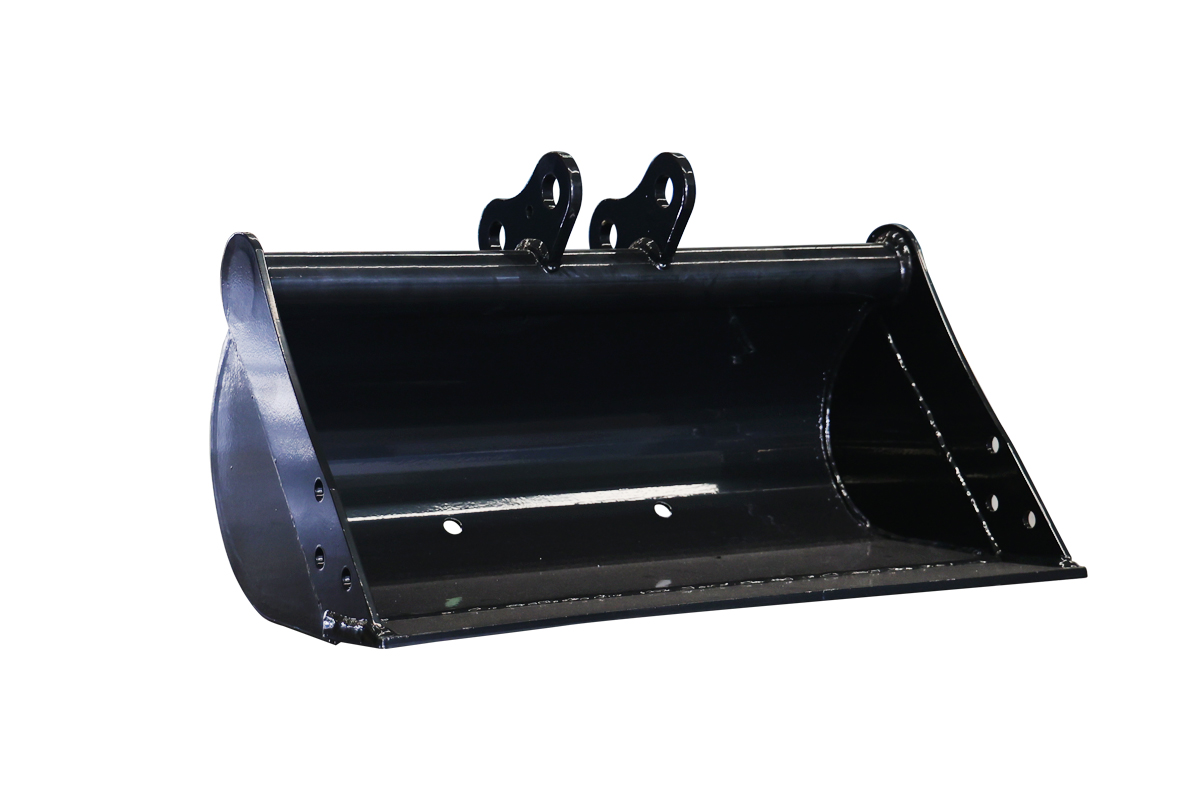

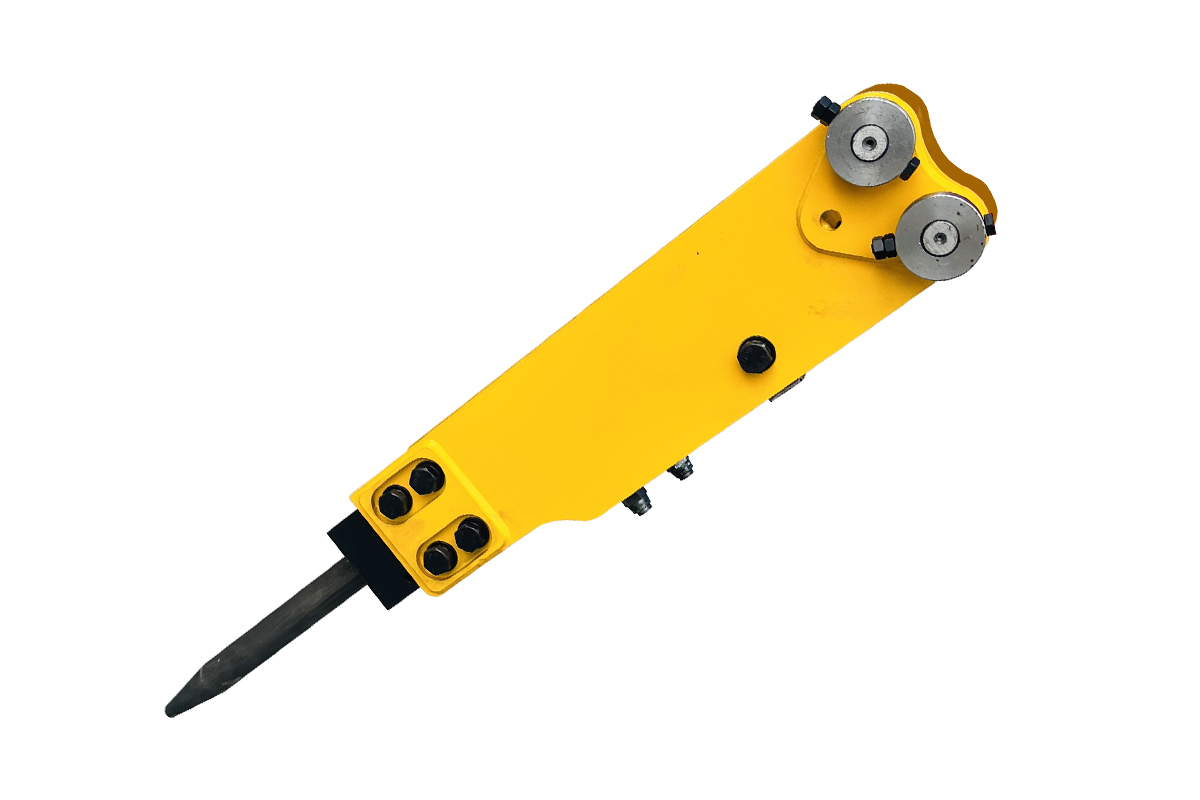

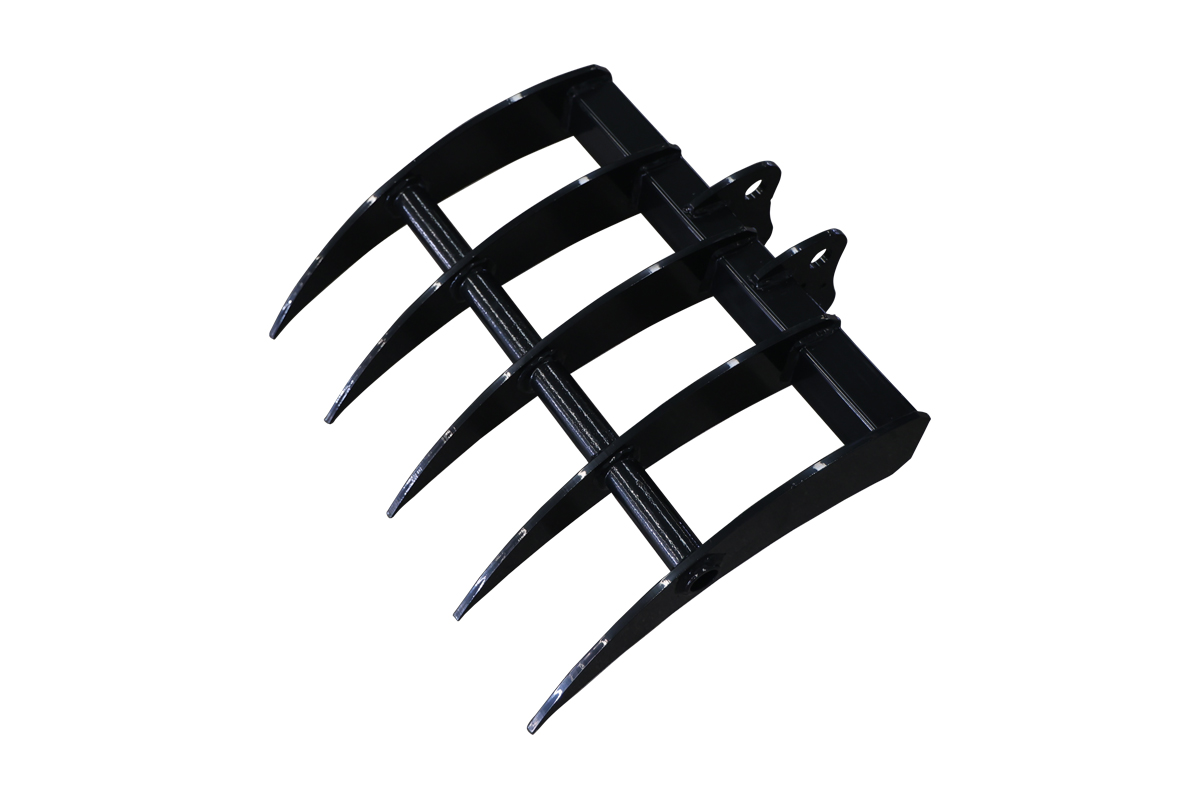

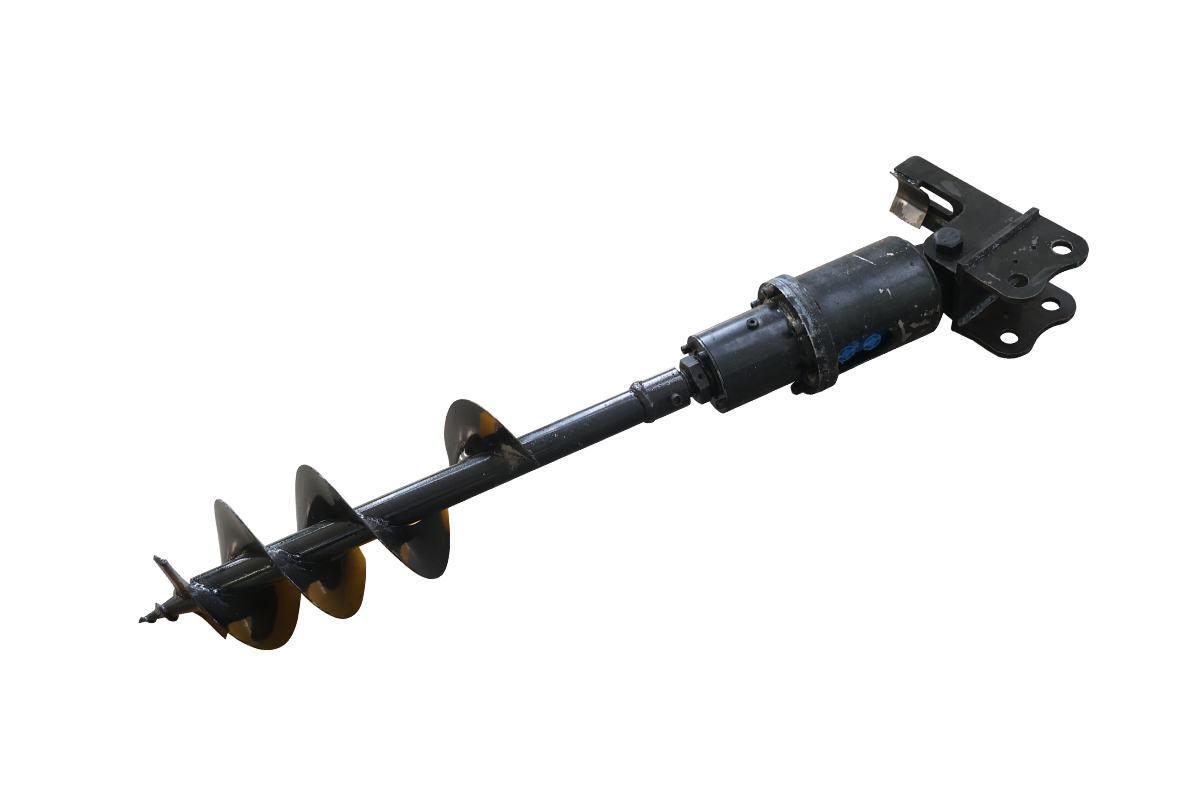

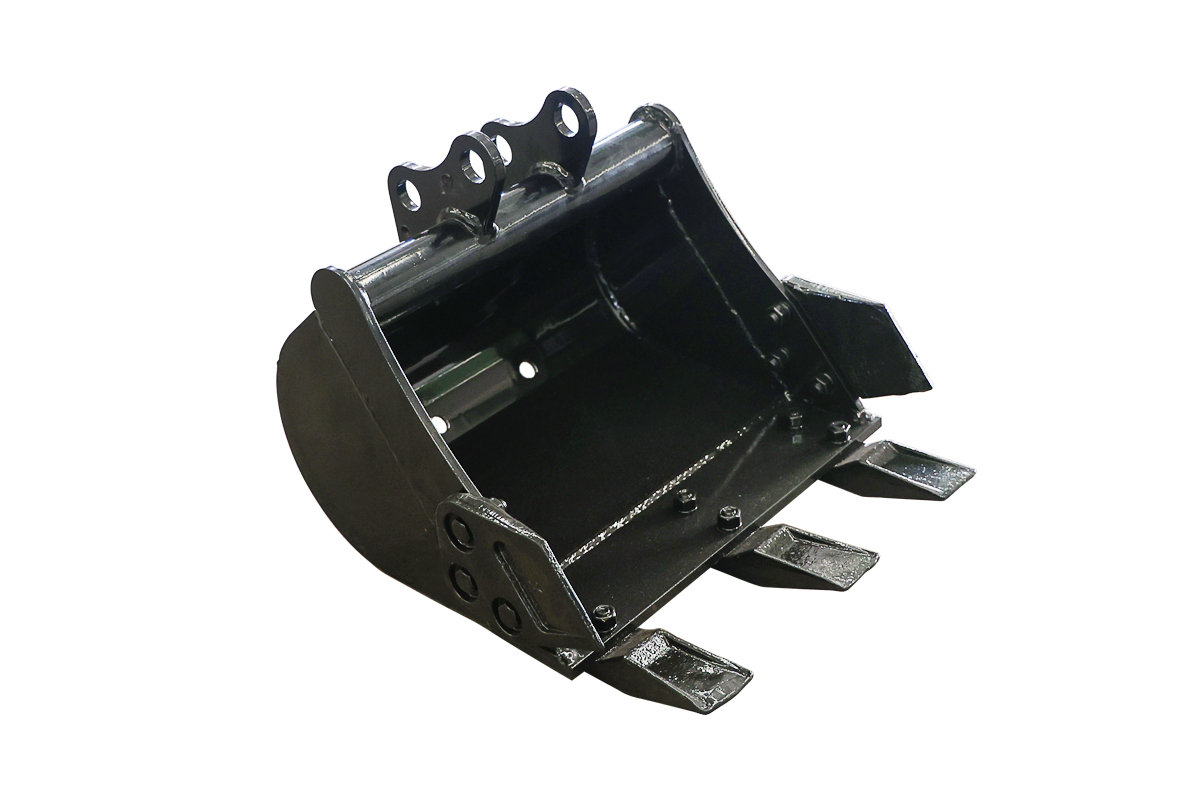

    Attachments

PRODUCT SPECIFICATIONS 12GR

Machine Size Code Metric (mm) Standard (inch)
Total transport length A         2,870 120
Total Transport width B             930 39
Total height C         2,285 95
Bulldozer blade width D             937 39
Bulldozer blade height               210 9
Caterpillar band center distance E             746 31
Plaform clearance               180 8
Standard bucket width               380 16
Total length of caterpillar band           1,200 50


Working Range Code Metric (mm) Standard (inch)
Max digging height F         2,490 104
Max dumping height G         1,745 73
Max digging depth H         1,725 72
Max vertical digging depth I         1,655 69
Max Vertial arm excavation depth J         3,030 126
Max turning radius at front end  K         1,490 62
Max excavation ground distance L         2,940 123
Max bulldozing height M             170 7
Max bulldozing height N             240 10
