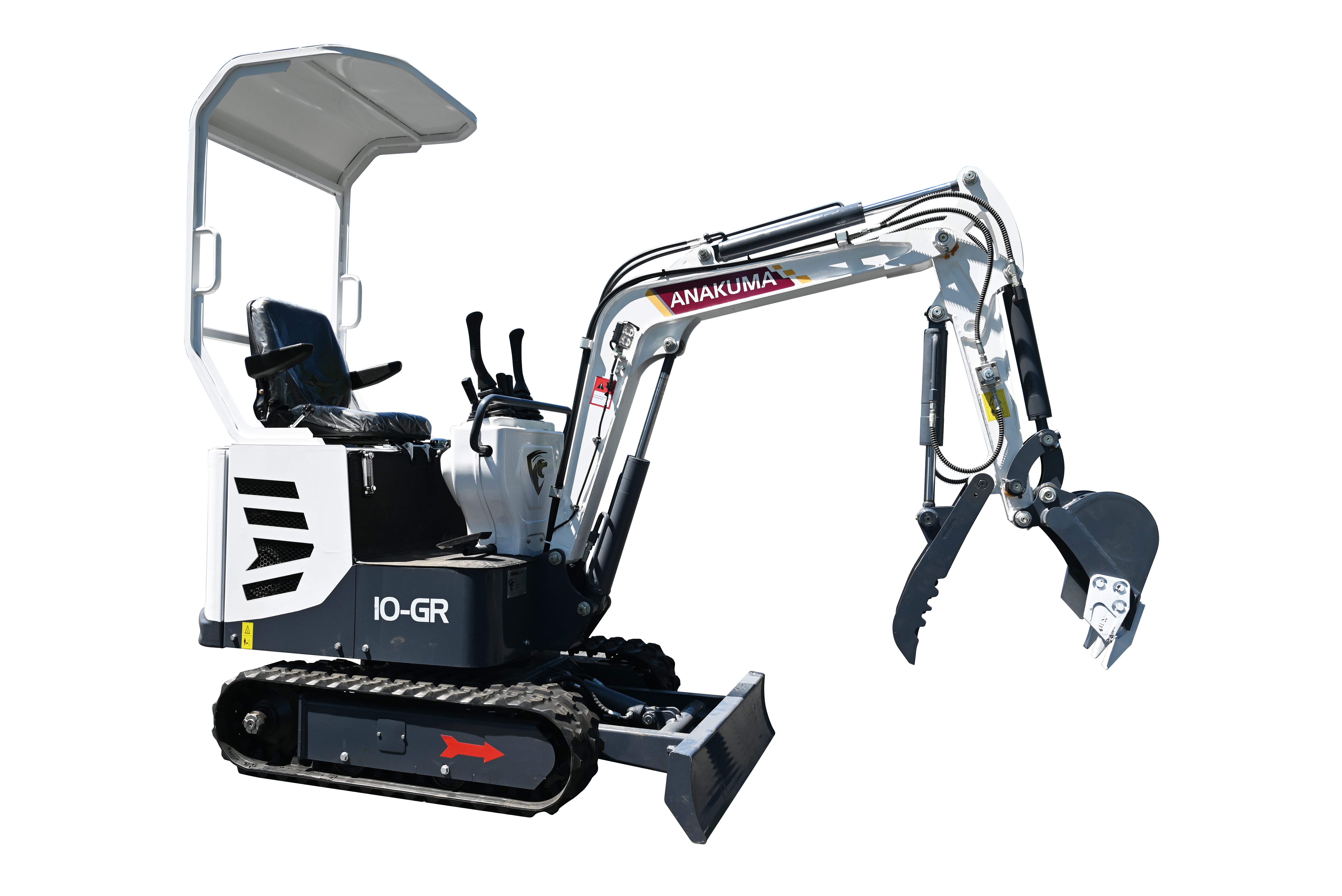

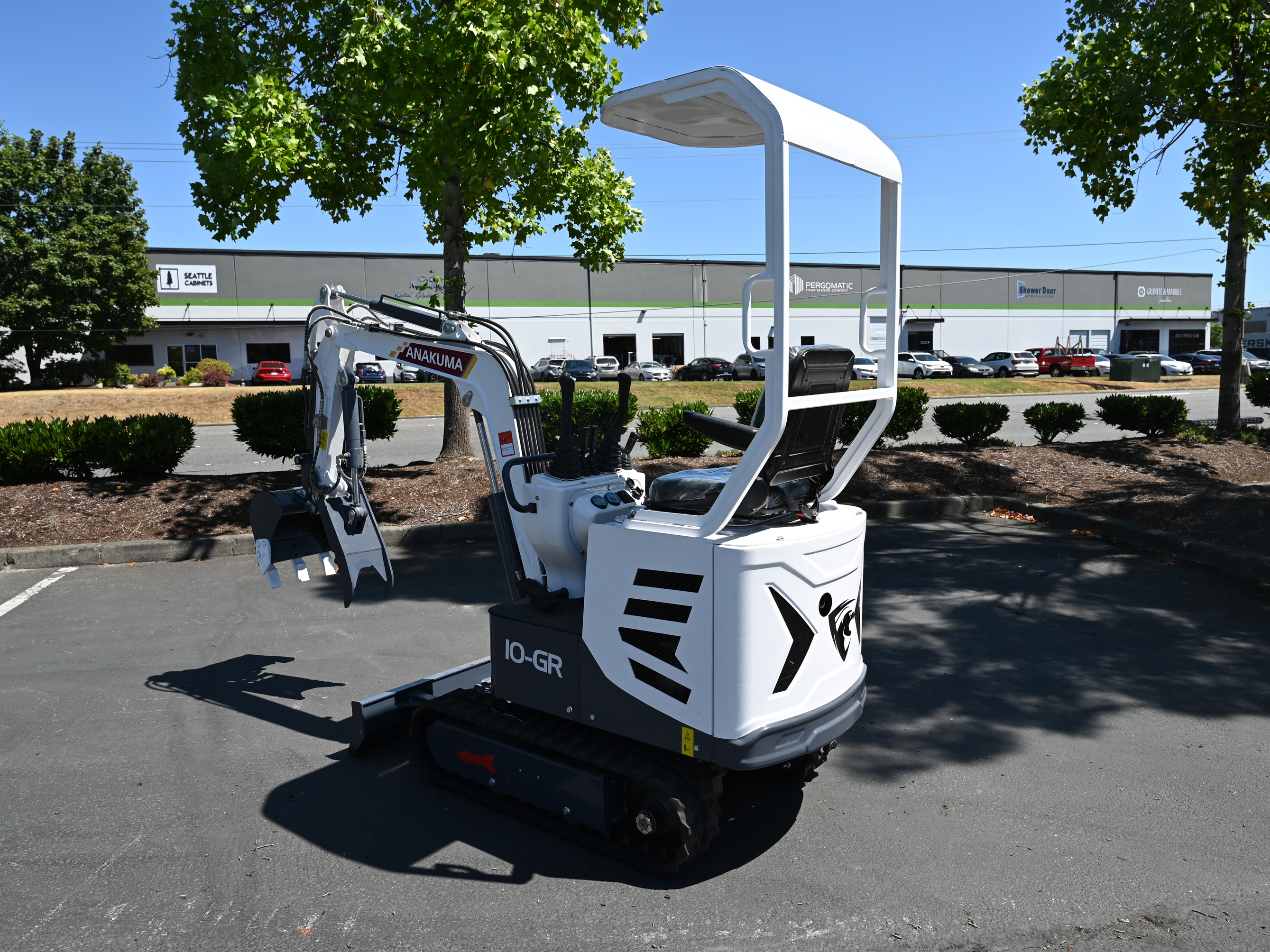

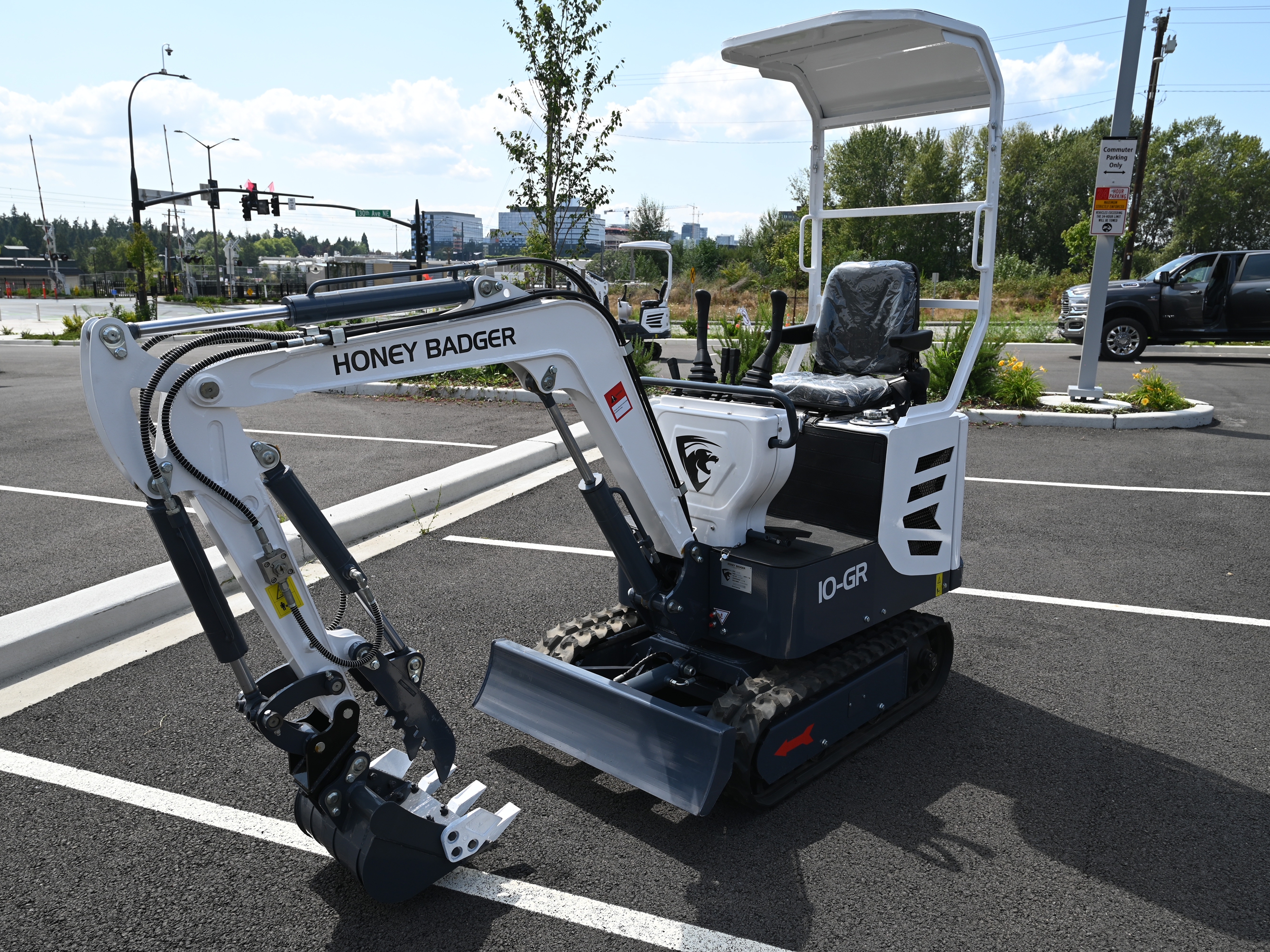

Mini Excavator

10GR
MSRP

$8,499

STANDARD FEATURES

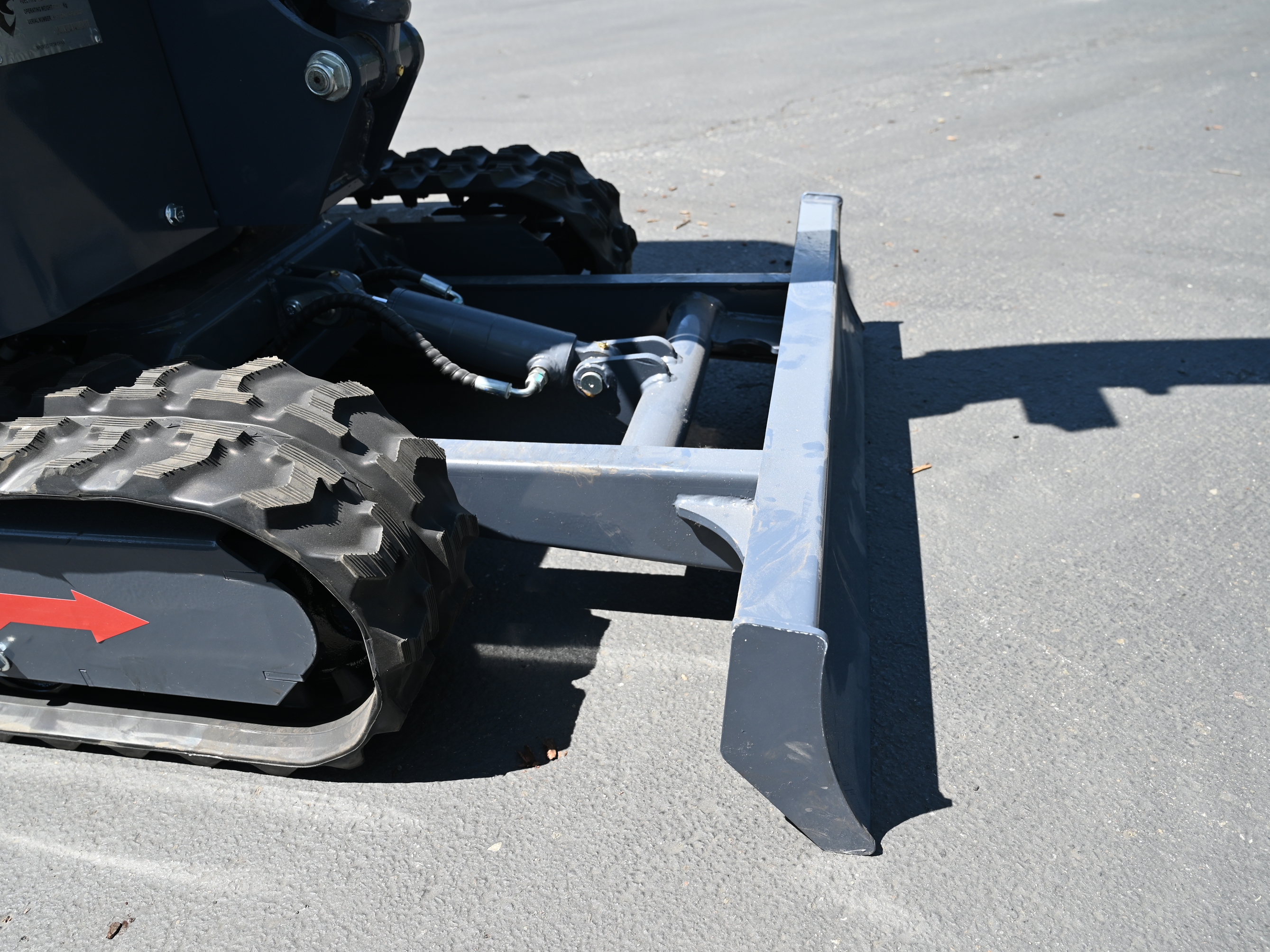

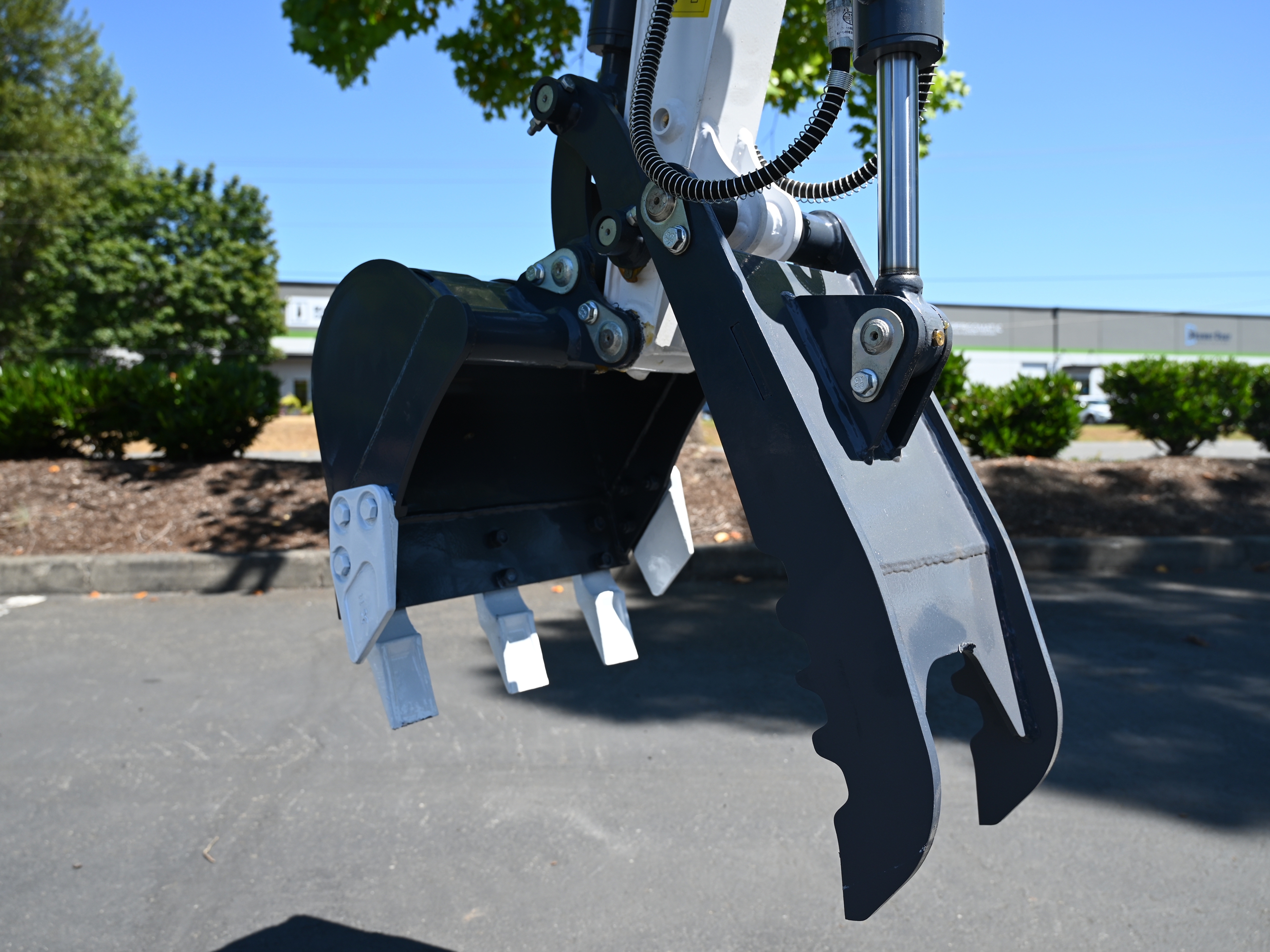

Zero tail swing Hydraulic thumb Mega dozer blade Powerful 500CC honda replica engine 19HP Auxiliary hydraulic circuit ready all attachments
19 hp

Net Power

76"

Dig Depth

2000 lbs

Operating Weight

1400 lbs

Bucket Breakout Forece

1800 lbs

Lift Capacity

    Attachments

PRODUCT SPECIFICATIONS 10GR

Machine Size Code Metric (mm) Standard (inch)
Total transport length A        2,870 120
Total Transport width B            930 39
Total height C        1,990 83
Bulldozer blade width D            937 39
Bulldozer blade height              210 9
Caterpillar band center distance E            746 31
Plaform clearance              180 8
Standard bucket width              380 16
Total length of caterpillar band          1,200 50

Working Range Code Metric (mm) Standard (inch)
Max digging height F        2,450 102
Max dumping height G        1,710 71
Max digging depth H        1,760 73
Max vertical digging depth I        1,690 70
Max Vertial arm excavation depth J        3,030 126
Max turning radius at front end  K        1,490 62
Max excavation ground distance L        2,940 123
Max bulldozing height M               98 4
Max bulldozing height N            230 10
