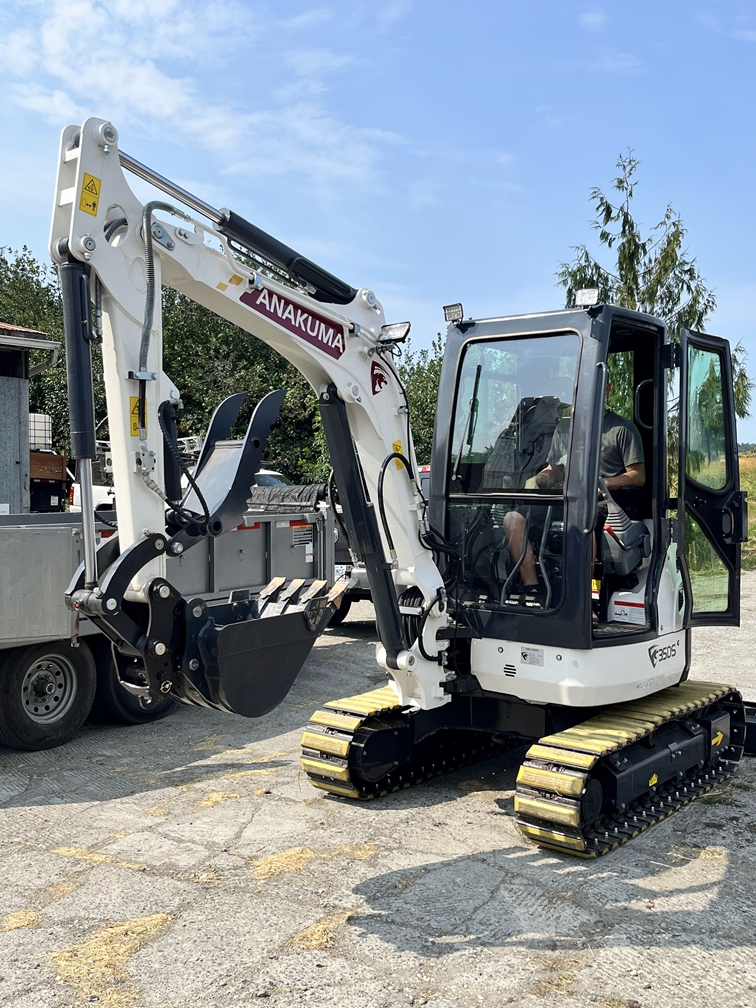

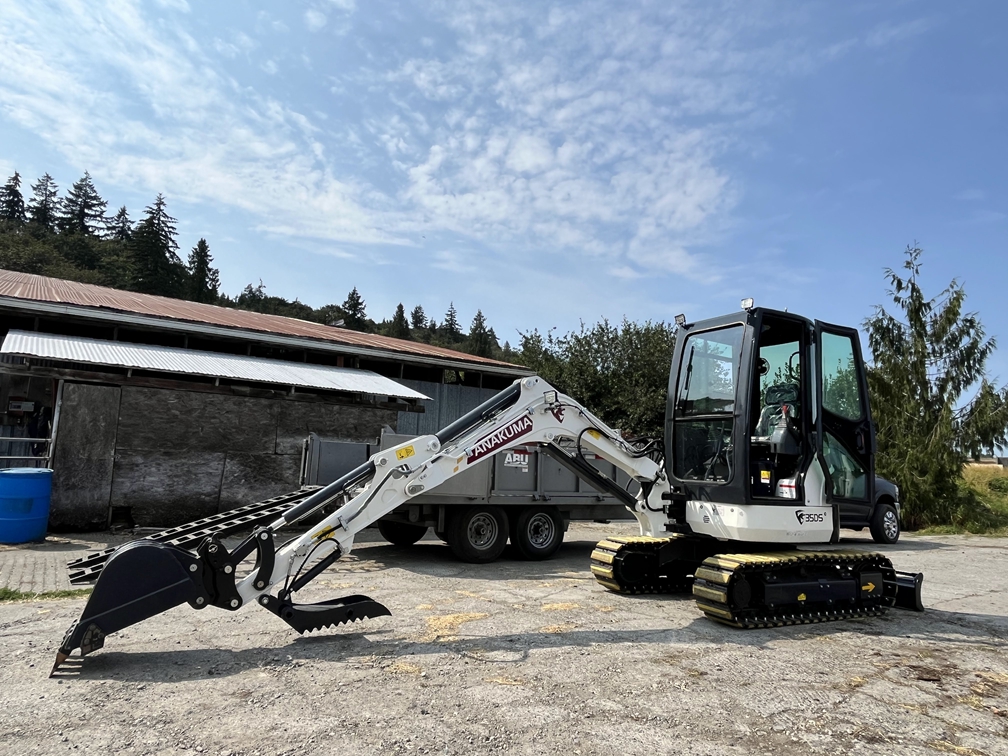

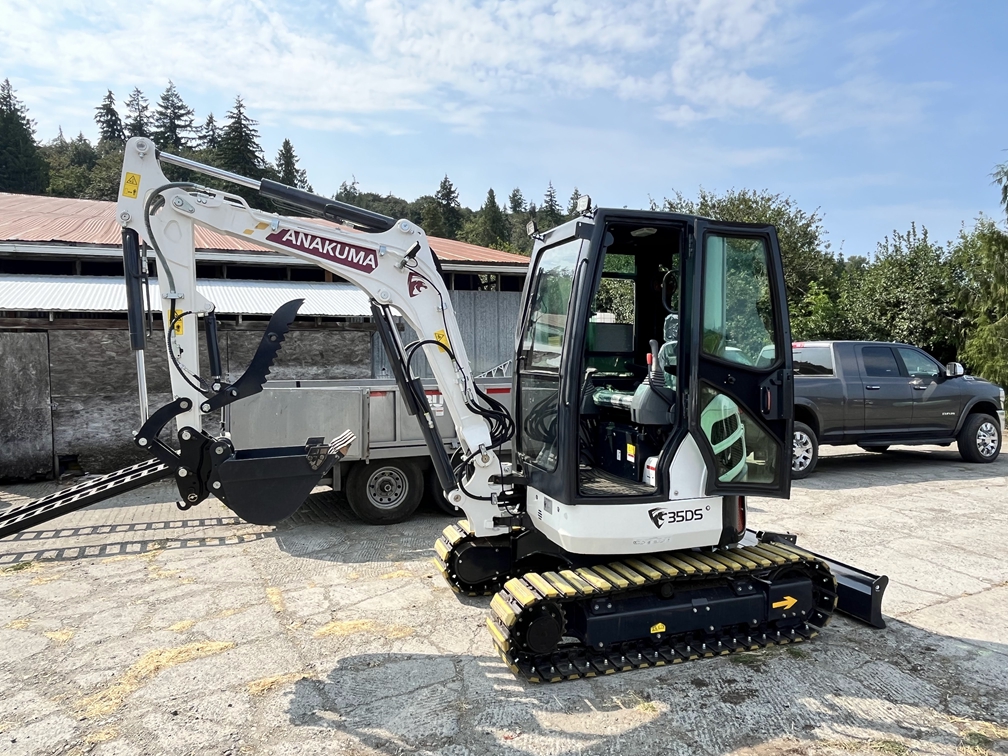

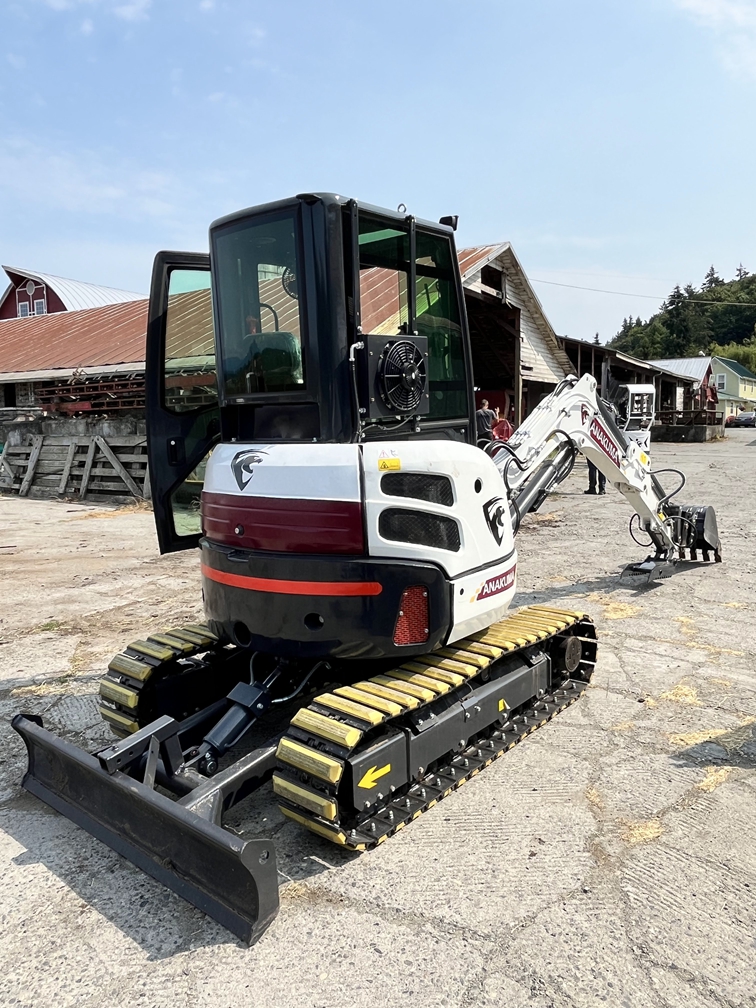

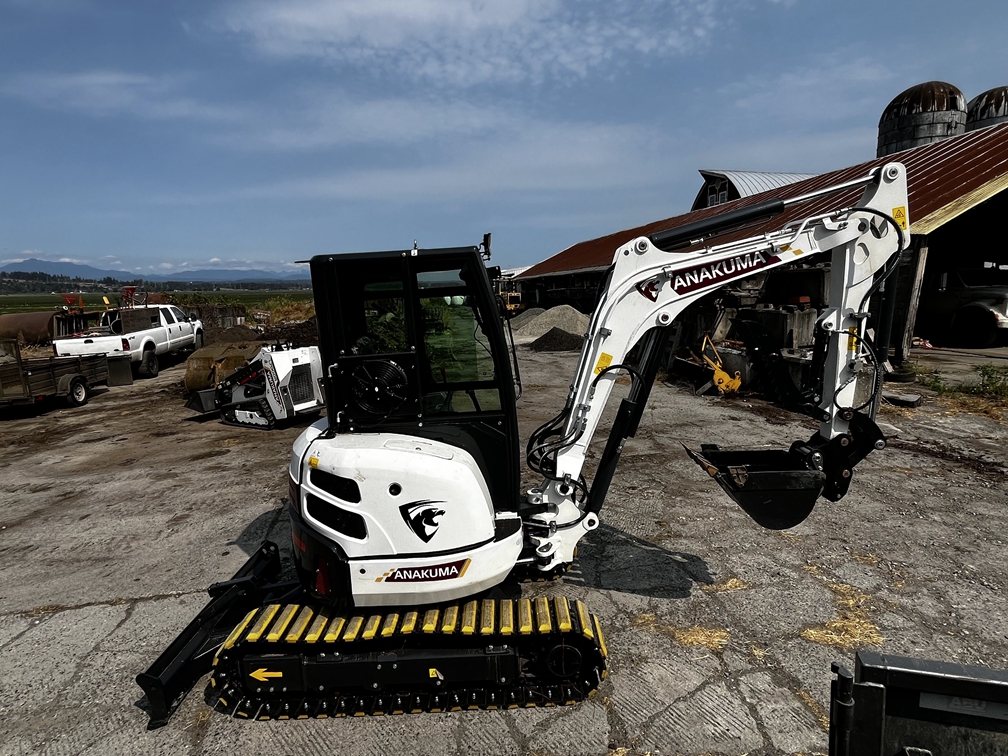

35DS - Mini Excavator

Mini Excavator

35DS

MSRP

1 year 1000 hours warranty Powerful Yanmar 3TNV88 diesel engine Swing boom functionality Steel Tracks Hydraulic thumb Hydraulic pilot Zero tail swing 1-way and 2-way primary auxiliary circuit Quick Coupler plumbing to end of stick

Net Power

122"

Dig Depth

8500 lbs

Operating Weight

6800 lb

Bucket Breakout Force

3500 lbf

Lift Capacity

Category	Spec	Unit
Bucket Capacity	4	cubt feet
Swing Speed	9	RPM
Gradabiality	30	Degree
Max Bucket Digging Force	6,800	lbf
Max Arm Digging Force	4,000	lbf
Engine Model	Yanmar 3TNV88
Power/Revolution Speed	24.4/2200	HP/RPM
System Pressure	24	Mpa

Machine Size	Code	Metric (mm)	Standard (inch)
Total transport length	A	4,950	206
Total Transport width	B	1,720	72
Total height	C	2,520	105
Bulldozer blade width	D	1,720	72
Bulldozer blade height		350	15
Caterpillar band center distance	E	810	34
Plaform clearance		300	13
Standard bucket width		430	18
Total length of caterpillar band		2,155	90

Working Range	Code	Metric (mm)	Standard (inch)
Max digging height	F	4,800	200
Max dumping height	G	3,400	142
Max digging depth	H	3,200	133
Max vertical digging depth	I	2,957	123
Max Vertial arm excavation depth	J	3,260	136
Max turning radius at front end	K	2,530	105
Max excavation ground distance	L	2,940	123
Max bulldozing lifting height	M	365	15
Max bulldozing cutting height	N	385	16
